250E72

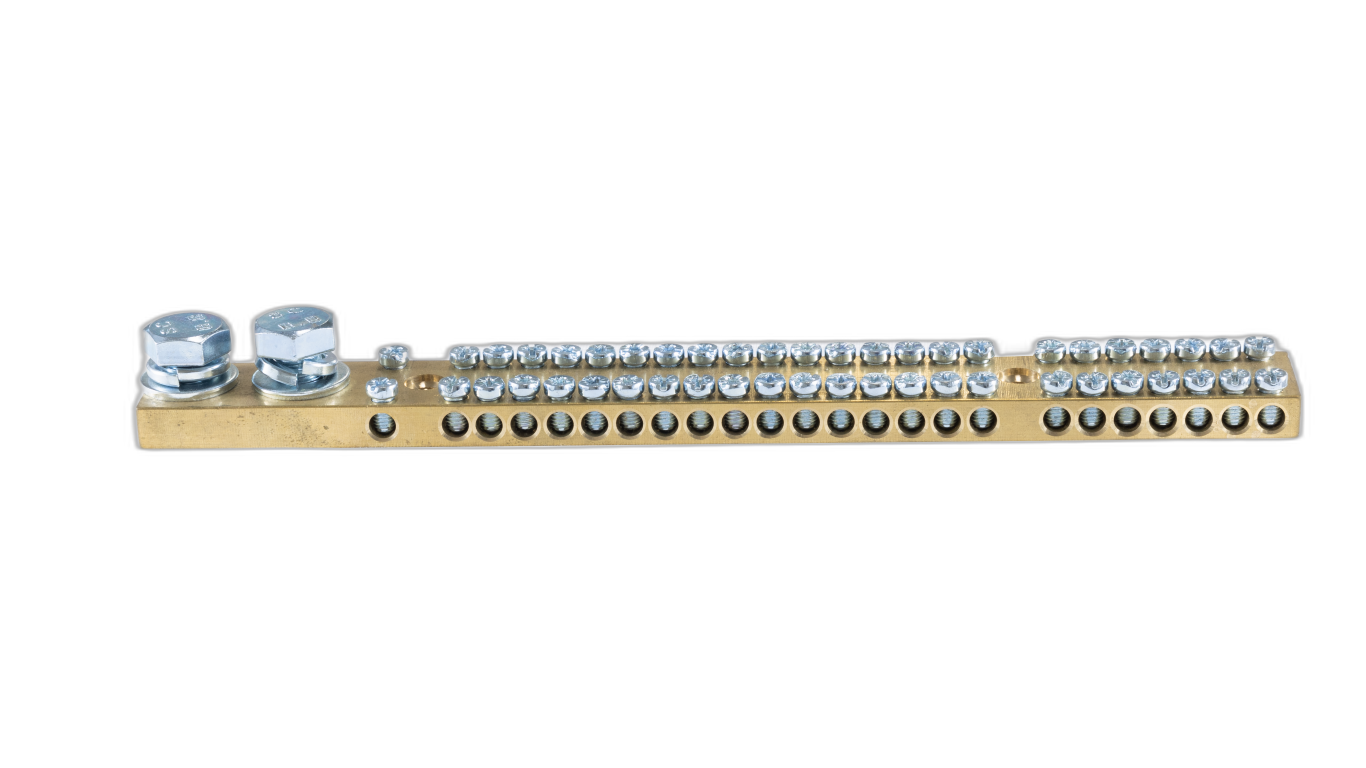

250A Earth/Neutral Bar 72 Holes

Code: ENB250.72
Earth/Neutral Bar 250 Amp 72 Holes 2 x M10 Studs
Online Price

$ 77.06

$ 84.77 inc GST

Volume Discount:
10 or more - $ 73.25 (ea)

Delivery in 5-8 days from date of order

This is an indent line and therefore once ordered cannot be cancelled or returned and is only available in multiples of 1.

Enquiry

Datasheet:
Switches Plus - Active-Neutral Links and Earth Bars


Description


The Earth/Neutral Bar is a crucial component in electrical systems, designed for connecting earth and neutral conductors. It ensures secure connections, enhancing safety and efficiency in installations.

Only high grade brass is used in the manufacture of our earth and neutral bars.

Brass Size

  • 18.75mm x 9mm - nominal 165A.
  • 25mm x 9.5mm - nominal 250A.

Main Studs

  • 2 x M10 zinc coated steel hex bolts with both spring and flat washer.

Tunnels

  • All tunnels to accommodate 16mm² cable.

Secondary Screws

  • All bars are fitted with 2x zinc coated steel screws per tunnel. The ends of the screws are domed so as not to cut or bur the copper cable. The screws are designed to cover 80% + of the tunnel as required in AS3000.

Mounting

  • All bars are manufactured with a minimum of 2x threaded and countersunk mounting holes.
