Elite100

Elite 300 Series Energy Meter

Code: ELITE307-2
Elite 300 Series MFM, Energy Meter with RS485 (MODBUS), 3P, AC, Four Line, Customized LCD, CLASS 0.5, Aux 40-300V AC/DC, 96x96mm
Request Quote

Special Order


Datasheet:
Elite-100-300


Description

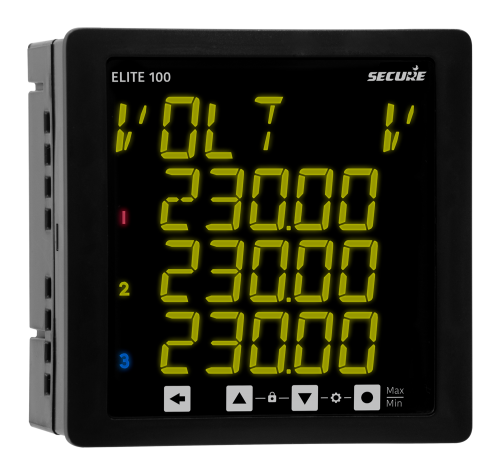

The Elite series is a range of multi-line, three-phase digital panel meters for reliable and accurate true-RMS measurement of electrical parameters (voltage, current, power, frequency etc.). It is apt for industrial and commercial applications and is available in two display types, LED display (Elite 100) and LCD display (Elite 300), with MODBUS communication, pulse output or alarm output available as an option.

  • Four-line alphanumeric LED / LCD display with seven digits for energy and five digits for instantaneous parameters
  • Reliable and accurate measurement
  • User-configurable alert thresholds for various parameters
  • Unique pass-through mechanism for current termination
  • Wide-range AC / DC auxiliary power supply
  • High level of protection degree
  • Display of minimum and maximum values
  • THD measurement for voltage and current, up to 31 harmonics
  • Current and power demand monitoring
  • Option for RS-485, pulse output or alarm output
  • True root-mean-squared (RMS) metering
  • Password protected setup mode
  • On-site setup for wiring configuration (3P 3W / 3P 4W)
  • Auto unit scaling for voltage, current, power and energy
  • Scroll-lock feature support
  • Configurable Modbus registers for ease of integration (Modbus variants only)
