Elite440

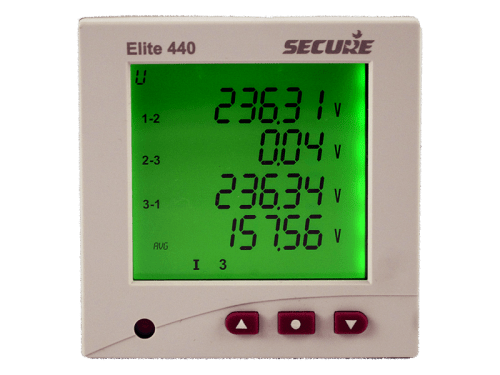

Elite 440 Series Energy Meter

Code: D3B052-000*3608943
Elite 440, Cl.0.5,1A/5A, Aux. 80-300V AC/DC
Request Quote

Special Order


Datasheet:
Elite440


Description


Elite 440 is a multi-line, three-phase digital panel meter for accurate and reliable measurement of electrical parameters (voltage, current, power, frequency, etc.). It is used for both industrial and commercial applications and features a large multi-line backlit LCD display that displays four parameters simultaneously. Modbus communication capability allows easy integration with energy monitoring systems. Expansion modules can be fitted for enhanced system integration (pulse inputs / outputs or analogue outputs and ethernet).

  • Large four-line seven-digit display (9.7 H x 5 W mm) with quadrant identification section and bar graph for instantaneous power-level indication
  • High accuracy: Class 0.2s, 0.5s, 1.0
  • Average THD measurement for voltage, current and power, up to 31st harmonic
  • Measurement selection (star or delta / 3P 4W or 3P 3W)
  • Modbus communication via RS-485 port / ethernet
  • True root-mean squared (RMS) metering
  • Calibration LED for accuracy test on site
  • Wide and configurable current range (1-2A and 5-10A)
  • Wide-range of auxiliary power supply, suitable for high-voltage or low-voltage installations
  • Maximum demand recording
  • Midnight snapshot (values) for selected energy registers
  • Scroll-lock and 'Favourites Page' display support
  • Expansion capability via add on modules for analogue outputs or pulse inputs / outputs and ethernet
  • Password protection for setup mode
  • Ethernet gateway module for easy integration of multiple meters connected over RS485 network
