Elite500withcoil

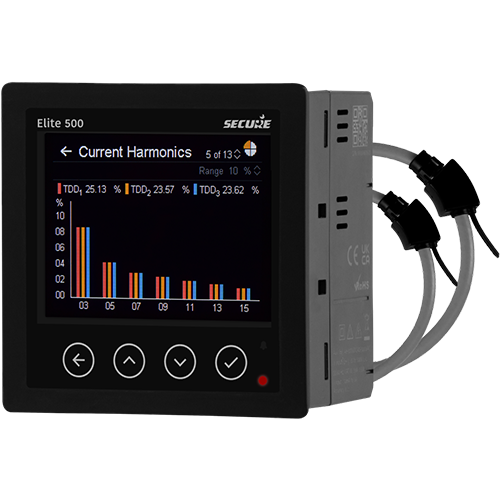

Elite 500 Series Energy Meter with 70mm Rogowski coil

Code: E500R-54C2
Elite 500, 35-500VAC (L-L), Ib 1 or 5A, Imax 6A, class 0.5s,TFT, Aux 85-300V AC/ 48-300V DC, MODBUS on RS485, SW Configuration-4 (Ind harmonics Up to 31st order, PQ parameters), 96x96mm
Request Quote

Special Order


Datasheet:
Elite500


Description


The Elite 500 multi-function meter has advanced power monitoring functionality, making it a suitable instrument both as a standalone device and as part of BMS, process industrial controls and SCADA systems. It also offers data logging, control IOs and modular communication with multiple protocols for third party system integration. Based on the application, Elite 500 allows customers to select conventional type CT or Rogowski coil input, which can be directly connected to the meter without the need for any additional integrator.

  • 17 energy measurements support including net and absolute energy parameters
  • Energy resolution: 7+3 digit, Instantaneous parameters: 4+3 digit
  • Class 0.2S / 0.5S accuracy for active and 0.5S accuracy for reactive measurement
  • TFT display showing vector diagram, bar chart, weekly / monthly energy consumption comparison
  • Configurable favourite parameter on display page
  • Time synchronisation options through SNTP
  • Power quality features including individual harmonics, THD, sag, swell, voltage unbalance and interruption counter
  • Total demand distortion (TDD) factors and waveform quality indices like K factor and crest factor
  • Positive, negative and zero sequence components
  • Flexible time-of-day tariff, maximum demand / demand support,
  • DST (daylight saving time)
  • Supports PIPO / DIDO, alarm and analogue output module
  • Alerts and events on configured parameters
  • Dual loggers for instantaneous and energy parameters
  • Dual socket support on Ethernet TCP IP module allows for simultaneous communication over Modbus
  • Supports RS485 modbus along with any chosen Ethernet protocol
  • High resolution page for configured energy channel
