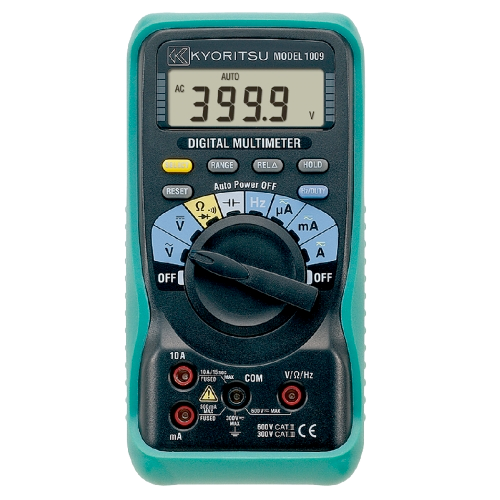

Kyoritsu 1009 Digital Multimeter
Code: 010090329C
Datasheet:
Instructions:
Description
- Display : 3999 counts
- Auto-ranging and manual ranging selector provided (with range hold feature)
- Resistance range provides audible continuity test
- Automatically turns power off in about 30 minutes to conserve battery life
- Direct current measurement up to 10A AC and DC
| AC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 to 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) |
| DC A | 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA) ±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A) |
| AC A | 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) |
| Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) |
| Continuity buzzer | 0 to 400Ω (Buzzer sounds below 100Ω) |
| Diode test | 1.5V open circuit voltage: Approx. 0.4mA Test Current |
| Capacitance | 40/400nF/4/40/100µF |
| Frequency | 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz |
| DUTY | 0.1 to 99.9% (Pulse width/Pulse period) ±2.5%±5dgt |
| Applicable standards | IEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326 |
| Power source | R6 (1.5V) × 2 |
| Dimension | 161(L) × 82(W) × 50(D)mm |
| Weight | Approx. 280g |
