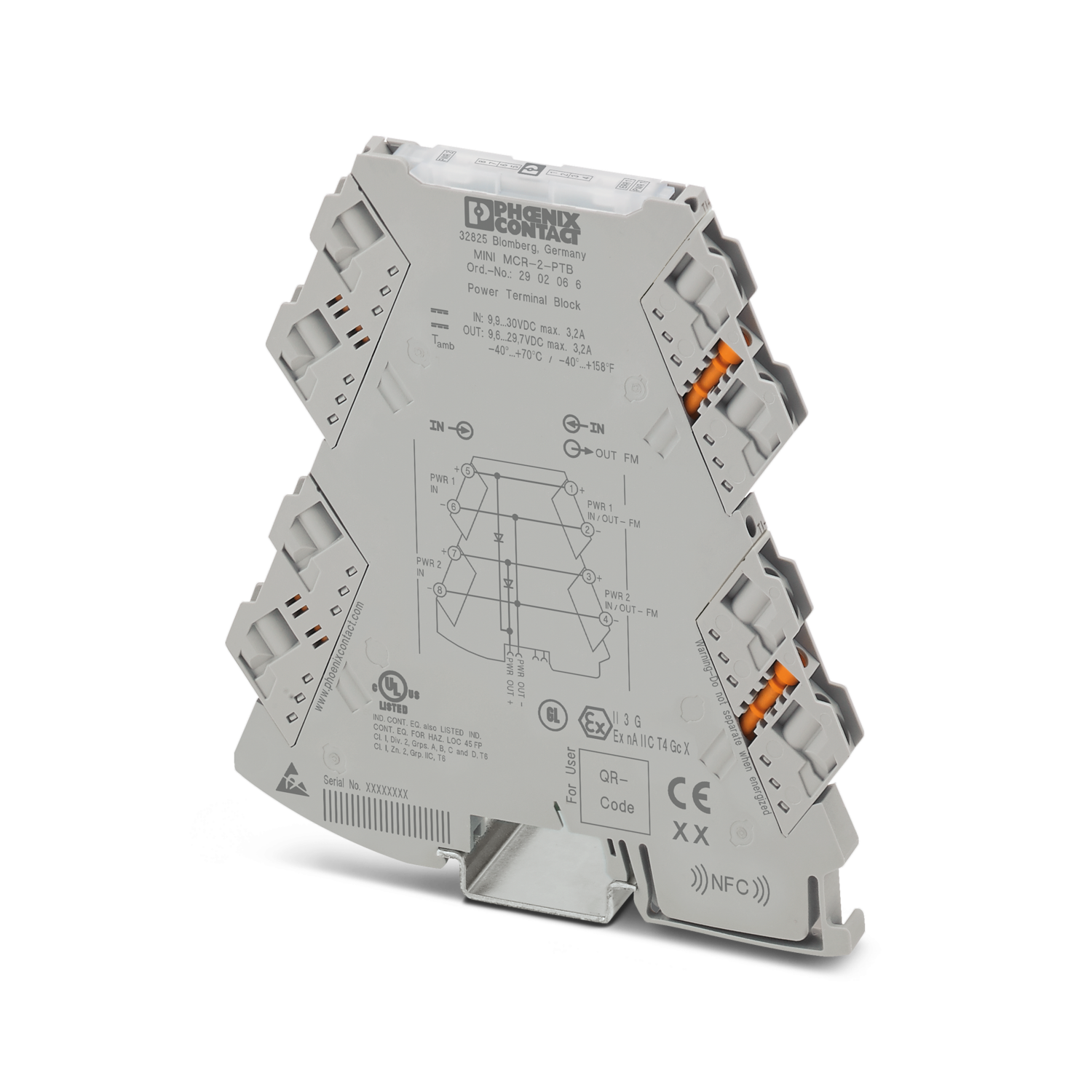

MINI MCR-2-PTB Power terminal block
$ 103.59
$ 113.95 inc GST
Delivery in 3-5 weeks from date of order
This is an indent line and therefore once ordered cannot be cancelled or returned and is only available in multiples of 1.
Description
The power terminal with plug-in connection technology is used to deliver the supply voltage to the DIN rail connector. Two separate voltage inputs permit a redundant and diode-decoupled power supply up to a maximum current of 3.2 A. The FM power terminal offers the additional functions of monitoring in combination with the MINI MCR-2-FM-RC(-PT) fault monitoring module (Order No.: 2904504, 2904508), the flexible, redundant supply of one or both module sides, and an extended supply voltage range of 9.6...30 V DC. The power terminal supports NFC communication.
