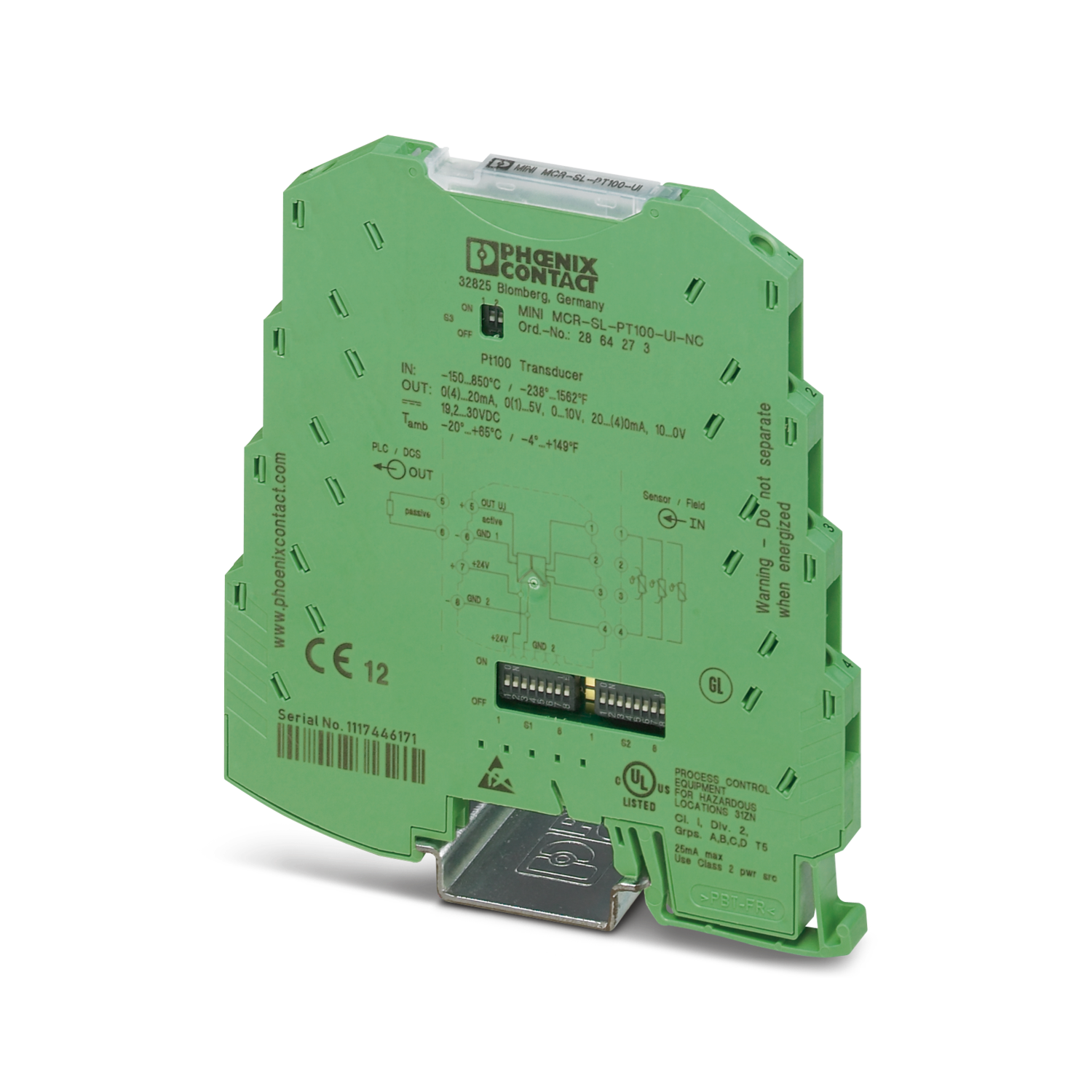

MINI MCR-SL-PT100-UI-NC Resistance thermometer measuring transducer
$ 208.94
$ 229.83 inc GST
Delivery in 3-5 weeks from date of order
This is an indent line and therefore once ordered cannot be cancelled or returned and is only available in multiples of 1.
Description
The narrow, 6.2 mm wide MINI MCR-SL-PT100-UI... is a configurable, 3-way isolated temperature transducer. It is suitable for connecting Pt 100 resistance thermometers in accordance with IEC 60751 in 2-, 3-, and 4-conductor connection technology. Electrically isolated 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V, 0 ... 5 V, 1 ... 5 V, 10 ... 0 V, 20 ... 0 mA, or 20 ... 4 mA standard analog signals are available on the output side. The DIP switches, which can be accessed on the side of the housing, are used to configure the following parameters: - Connection technology - Temperature range to be measured - Output signal - Type of error evaluation Power (19.2 V DC to 30 V DC) can either be supplied via the connection terminal blocks of the modules or in conjunction with the DIN rail connector.
