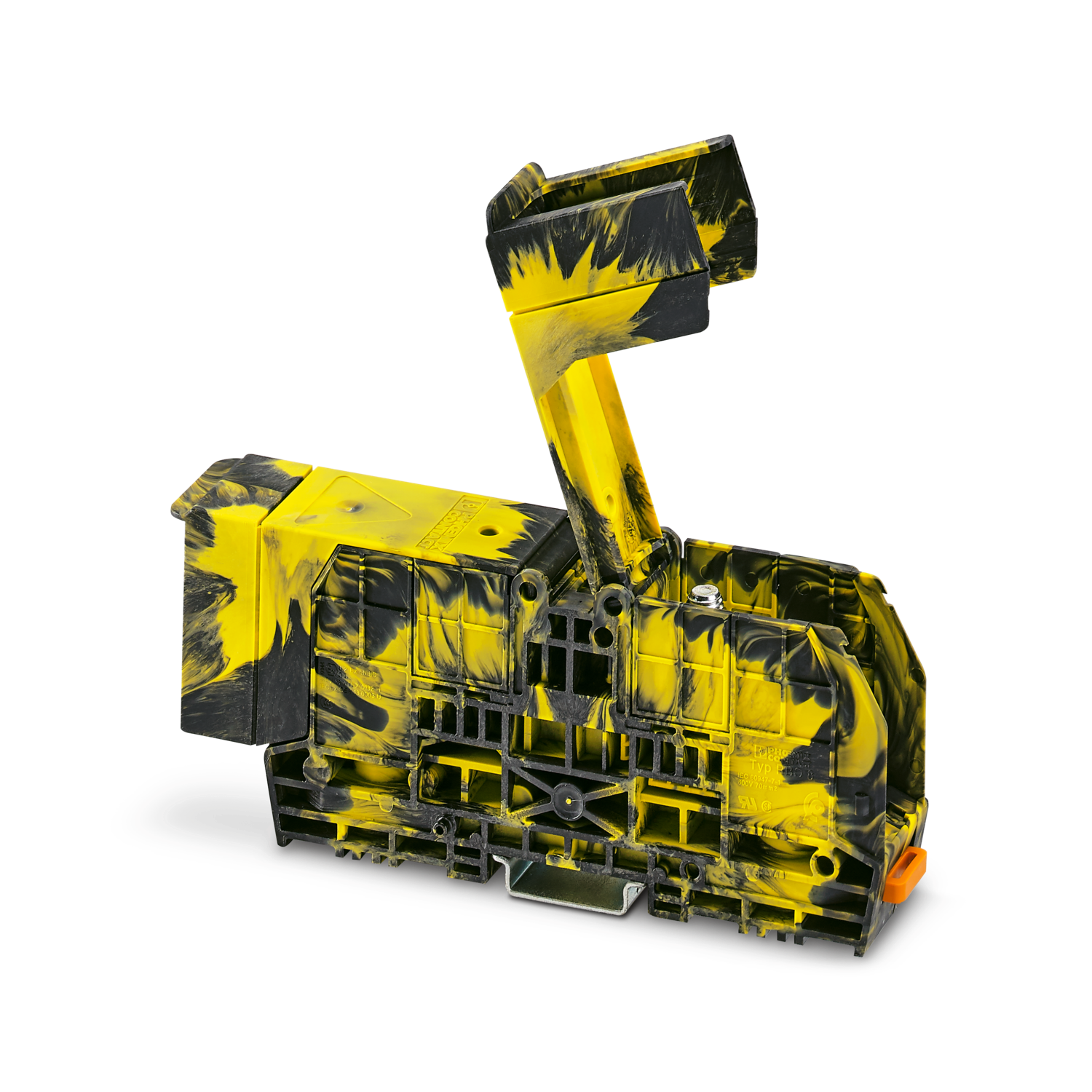

RBO 8-FE-HC Bolt connection terminal block

The RBO product family offers a compact bolt connection terminal block for every conductor connection from 0.5 to 300 mm². The terminal blocks have threaded bars with M5 to M16 metric thread sizes. The bolt terminal blocks also accommodate currents up to 520 A. Like the RSC terminal blocks, this series of terminal blocks also includes versions for DIN rail and direct mounting. Here too, preassembled blocks round out the product range. For easy potential distribution, the RBO family includes connection rails (RBO…VS) that are attached to the threaded bolts.
