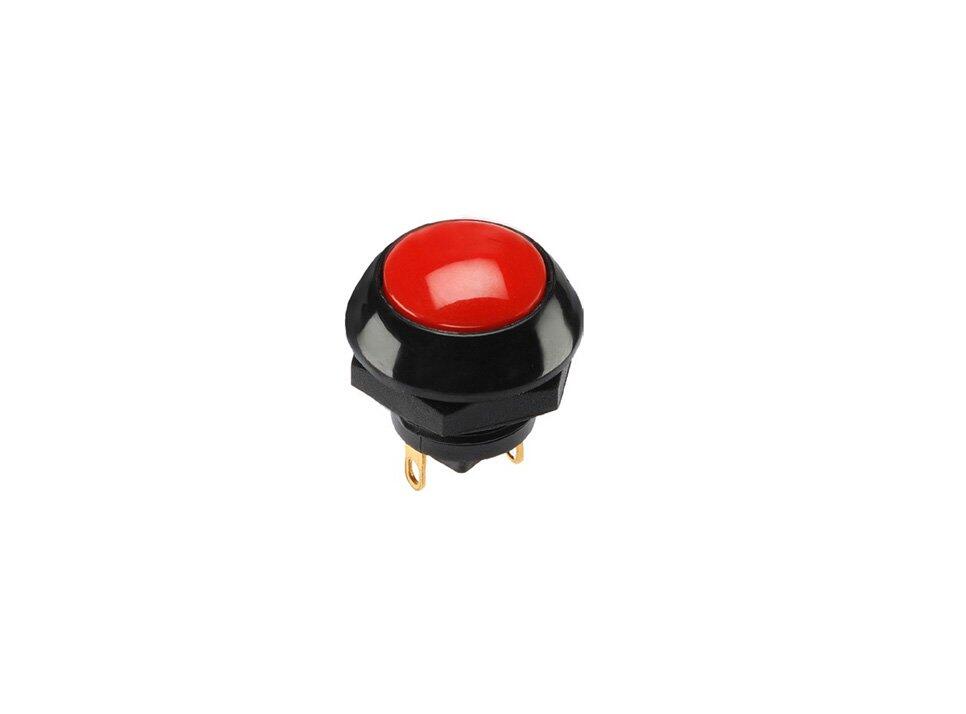

Sealed Flush Dome Momentary Double Pole Pushbutton Red

Code: P9-113121
Otto Sealed Dome Momentary Pushbutton 2 Circuit Normally Open + Normally Closed IP64. Solder Termination. Black Bezel Red Button

$ 22.00

$ 24.20 inc GST

Volume Discount:
10 or more - $ 20.00 (ea)
25 or more - $ 18.00 (ea)
50 or more - $ 17.00 (ea)
100 or more - $ 16.00 (ea)

47 available in stock

Enquiry

Datasheet:
P9 Otto.pdf
Catalogue:
OTTO_Controls-Full-Line-Catalog.pdf


Description


Compact Momentary Snap Action panel mount switches for wet and dusty environments with positive tactile feedback. Manufactured in the USA with a mechanical life expectancy of 1,000,000 operations.

The P9 Dome series pushbutton switches feature a contoured dome style pushbutton and share similar size and characteristics to the P7 series. Major differences are plastic housing construction and the availability of a shorting bar contact arrangement. There are two button versions: low button profile and high button profile. The P9 comes with a threaded case for hex nut mounting or with a snap-in case. The switch series features short behind panel depth. They also offer excellent mechanical and electrical performance while operating under severe conditions found in demanding applications.

The P9 Dome series is offered in dusttight and moistureproof sealed construction. One million mechanical operations and an electrical life of 25,000 operations at full rated load of 5 amps resistive or 3 amps inductive. Watertight sealing is available simply by adding a “W” suffix to the part number to specify IP68S rating.

The P9 Dome series is available in standard and low-force double break snap-action and non-snap shorting bar models. All are momentary action. Special contact variations are available. High contact pressure and unique contact design provide low contact resistance for low level switching capability as well as full rated service. Solder, PC Pin, and 0.110” Quick Connect termination options are available. Positive tactile feedback signaling the operator when the switch is operated is available in snap-action models but not shorting bar models.

The P9 Dome series is a quality precision switch designed for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive, rugged pushbutton switches are required.
