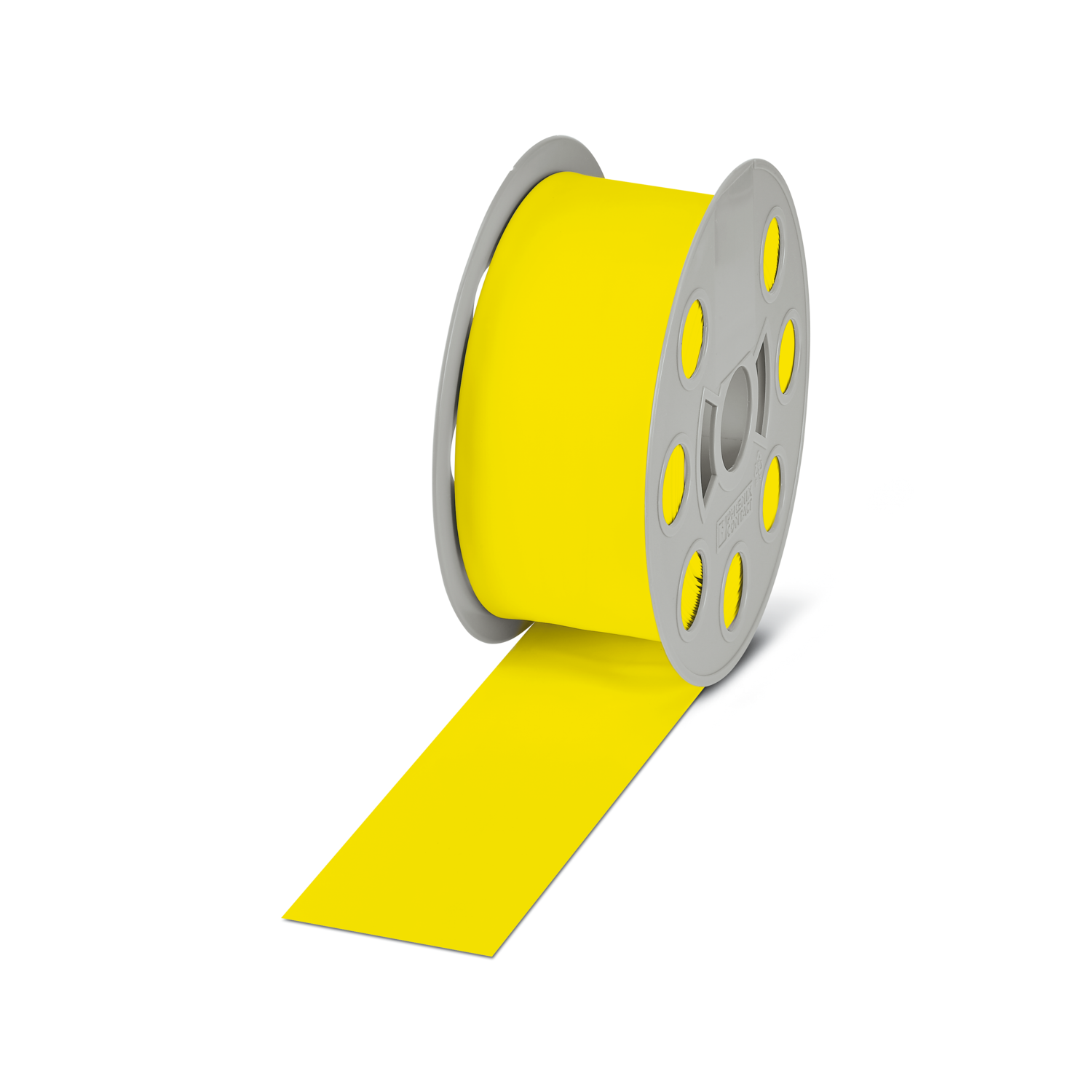

WMS 50,8 (EX80)R YE Shrink sleeve

Name: Switches Plus Components Pty Ltd
Address: 242 Governor Road, Braeside, Victoria, 3195, Braeside, Victoria, 3195, AU
Telephone: +61 3 8587 3200

Code: 800311

Shrink sleeve, Roll, yellow, unlabeled, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, unperforated, mounting type: slide-on, cable diameter range: 16.9 ... 50.8 mm, Number of individual labels: 1, roll length: 15 m, text field height: 80 mm, text field width: 15000 mm

Request Quote

Special Order

Datasheet:

Datasheet_0800311

Catalogue:

Phoenix Industrial Marking

Description

The continuous shrink sleeves in the WMS... product family, in size 2.4 ... 9.5, are suitable for automated processing with the THERMOMARK E.SLEEVE applicator. The continuous format of the material means that individual marker lengths can be realized. After the printing and applying process, you have the option of shrinking the marked shrink sleeves by applying heat manually and thus fixing them on the cable/wire.

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects. High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter. As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position. High diameter coverage with a shrink ratio of 3:1. Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
