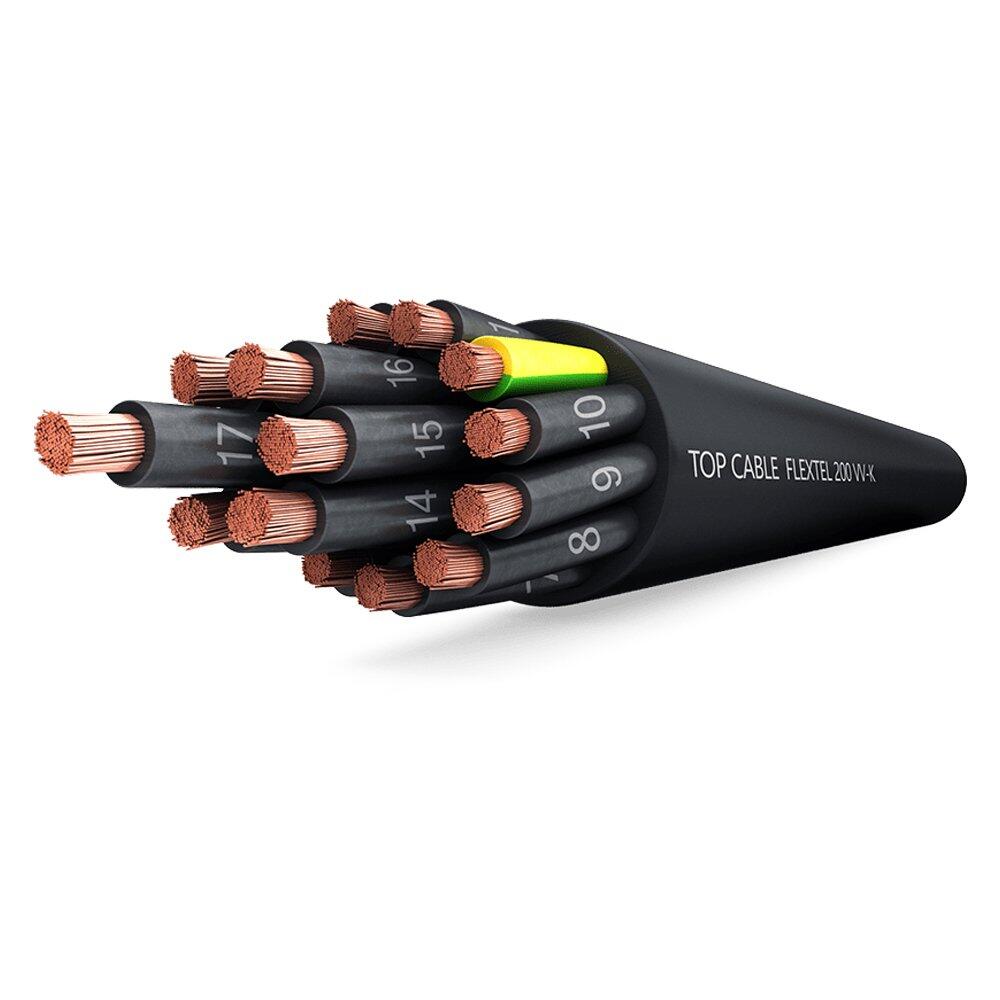

18 core & earth 1.5mm² Control Cable

FLEXTEL 200 VV-K cable is suitable for fixed installations with complex layouts where flexible cables are required. It is also ideal for connecting motors or frequency converters. The characteristics of the outer sheath material make this cable extremely versatile as it provides a high level of protection in all types of environments.

Electrical performance
LOW VOLTAGE 0,6/1kV

Thermal performance
Maximum conductor temperature: 70ºC (HD)
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations)

Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reduced emission of halogens. Chlorine <15%.

Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical & Oil resistance: Good.
UV Resistant: UNE 211605, Annex A.2.
Water resistance: AD5 Jets.

FLEXTEL 200 VV-K cable design

Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation
Flexible PVC. The standard identification of insulated conductors is Black numbered+ Yellow/Green

Outer sheath
Flexible PVC type ST1 according to IEC 60502-1, black colour.
