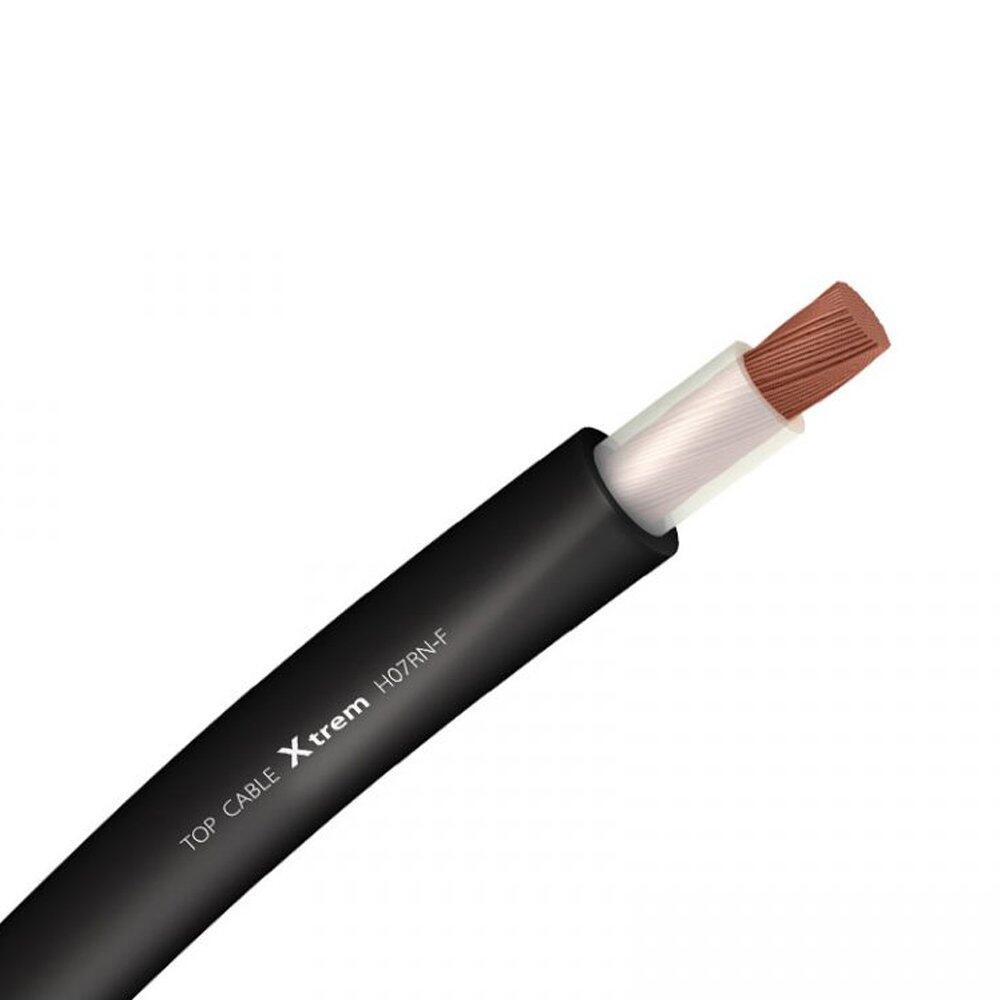

H07RN-F Rubber 1x 16mm²

Xtrem® DN-F is a flexible and rubber cable for mobile heavy duty. Suitable for installations in dry, damp or wet locations, outdoors, for hazardous areas with explosive gas atmospheres, machines in industrial workshops, motors and transportable machines; on construction sites and for agricultural exploitations. Suitable for submerged installations (AD8).

Electrical performance
Low voltage: 0,6/1 KV.

Thermal performance
Maximum conductor temperature: 90°C.
Maximum short-circuit temperature: 250°C (max. 5 s).
Minimum service temperature: -40°C (fixed and protected
installations) and -25°C (mobile use).

Fire performance
Flame non-propagation according to EN 60332-1 / IEC 60332-1.

Mechanical performance
Minimum bending radius:
3x cable diameter < 12 mm.
4x cable diameter ? 12 mm.
Impact resistance: AG2 Medium severity.

Environmental performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.

Water resistance:
AD8 Submersion.
Submersible pumps in drinkable water according to AS/NZS4020.
Deep wells. Drinkable water. AWQC.

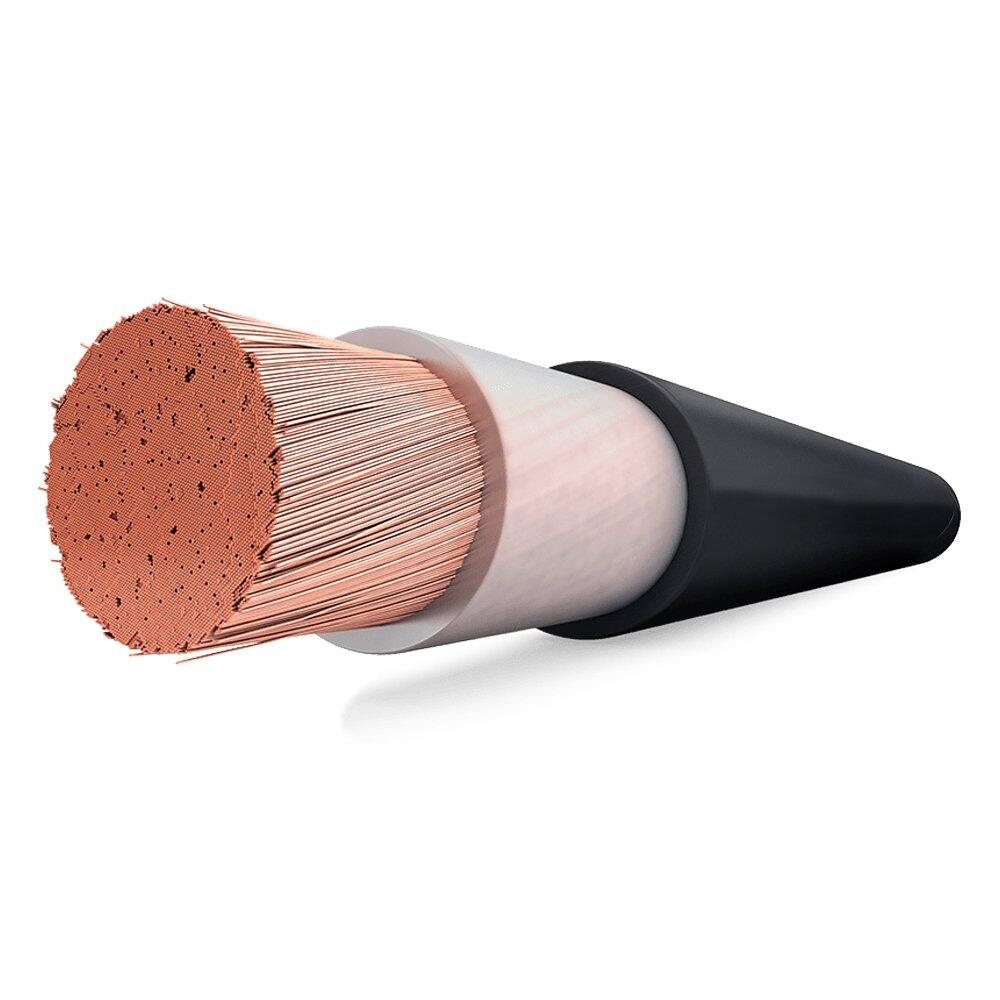

XTREM DN-F cable design

Conductor
Electrolytic annealed copper class 5 (flexible) according to EN 60228
and IEC 60228.

Insulation
Thermosetting rubber type EPR according to IEC 60502-1.
The standard identification according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/Yellow
4 G Brown + Black + Grey + Green/Yellow
5 G Brown + Black + Grey + Blue + Green/Yellow

Outer sheath
Thermosetting flexible rubber type SE1 according to IEC 60502-1. Black colour.
