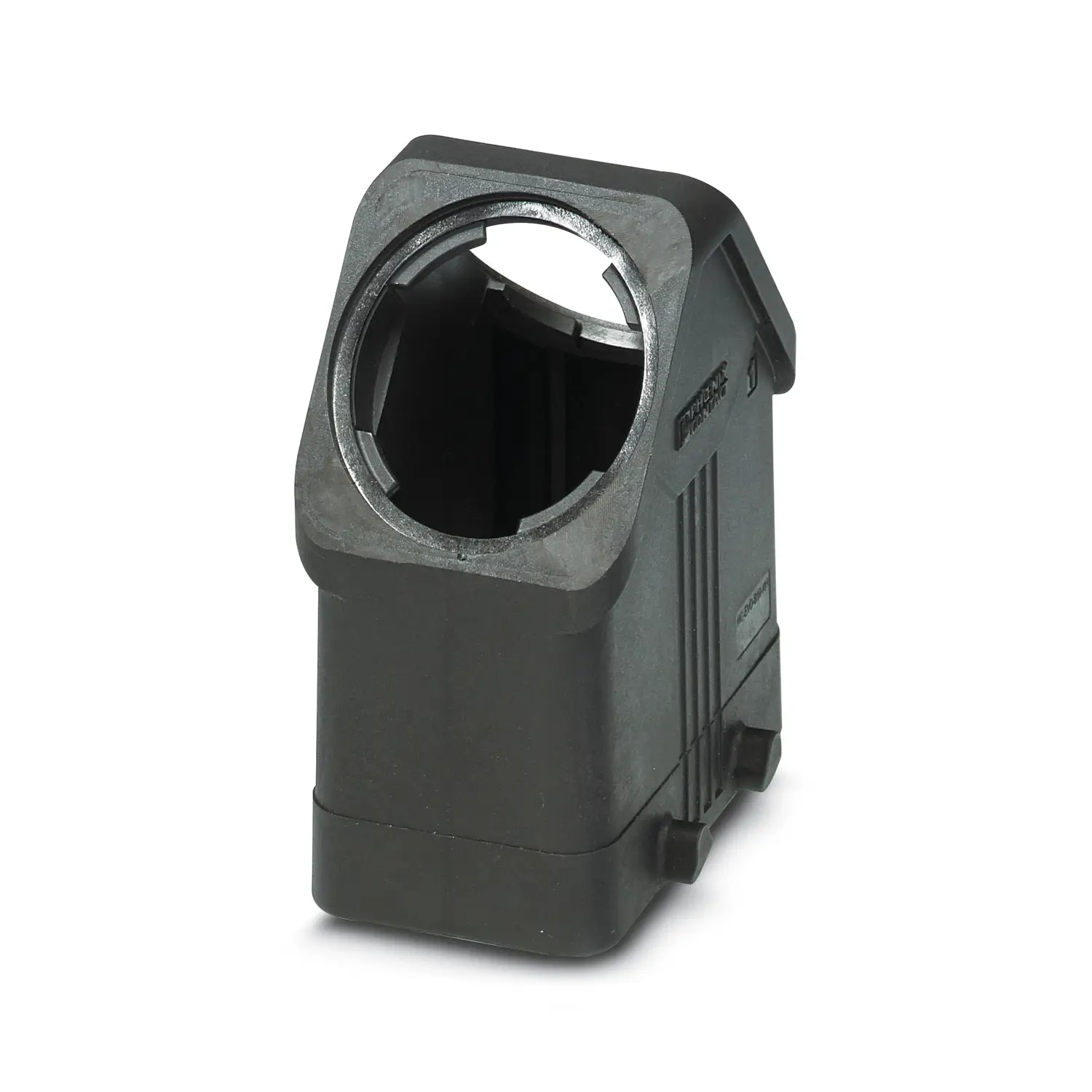

HC-EVO-B10-HHFD-2B-PL-BK Housing

The HEAVYCON EVO product family is characterized by particularly robust connector housings made of fiberglass-reinforced plastic. They feature different cable orientations and mechanical resilience at the same level as metal. They meet degree of protection IP66 and are as robust as metal housings due to their impact strength up to IK08/09. They are also compatible with standard aluminium housings. Their sophisticated design combines stability, protection, and flexibility – with a reduced weight and lower costs.

HEAVYCON EVO housings in detail

• HEAVYCON EVO housings reduce the number of versions, and therefore your warehousing costs, by up to 70%. Using just one housing type and four cable glands, you can implement solutions for every possible application.
• The plastic housing versions are as reliable as the metal versions due to degree of protection IP66, impact strength IK08/IK09 and a high temperature range of -40 to 125°C.
• With multi-gland cable glands for HEAVYCON EVO, you can conveniently and reliably run different cables into your control cabinet via one plug-in interface. Cables are simply pushed through the pierced membrane. The IP65 degree of protection is ensured by the membrane seal and retention with a cable tie.
• With the flexible bayonet locking, you can determine the cable outlet direction on site and subsequently change it, if required. You have the choice of a straight or side outlet. With the EVO TWIN housings, you can install two flexible cable outlets on one plastic housing.
• EVO housings in sizes D15 and D25 are very narrow and protect your interfaces even when space is limited. Matching contact inserts, including with Push-in connection, ensure fast installation.
• The M1 single-module housings made of plastic accommodate a modular contact insert and a PE module. As a result, they enable an extremely compact interface.
