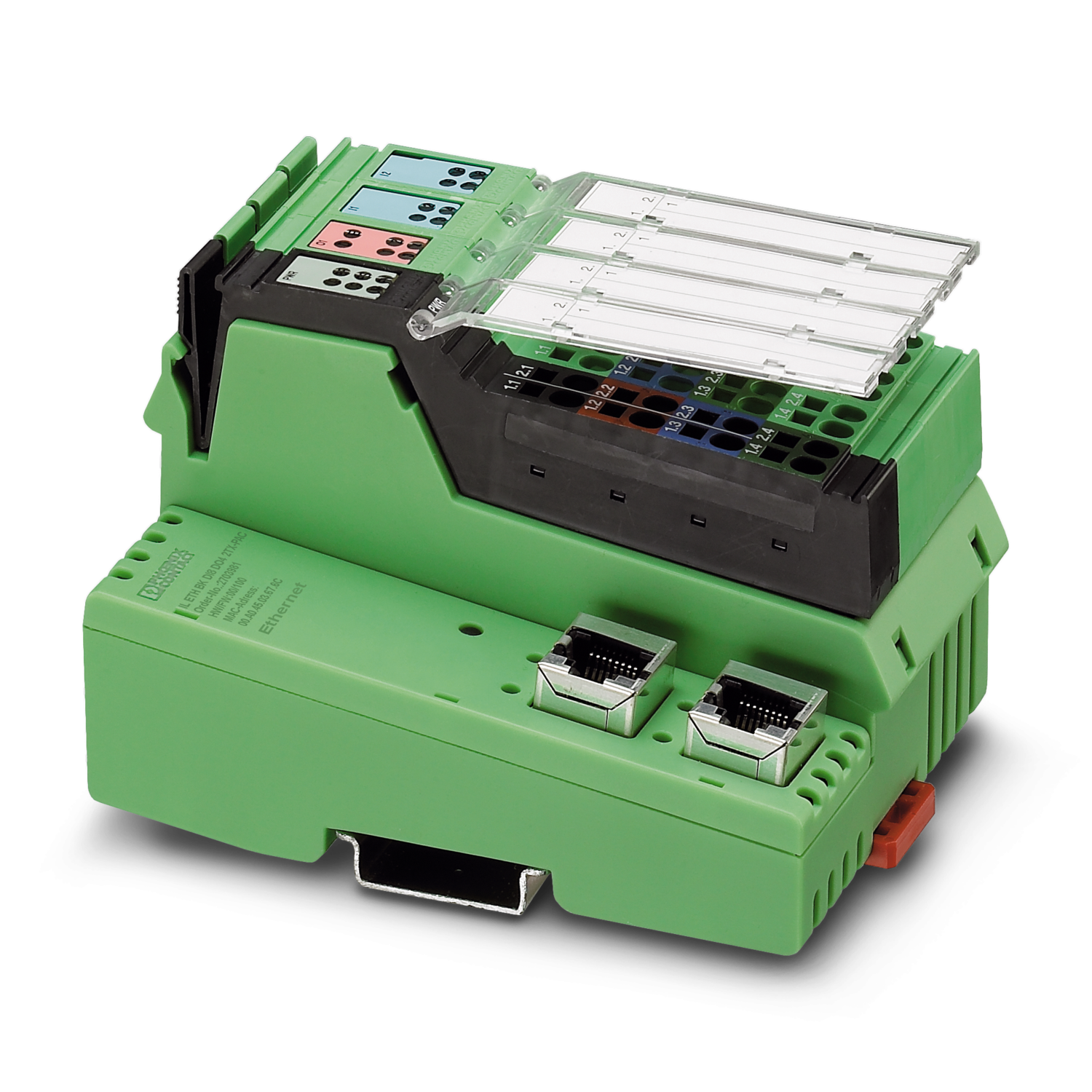

IL EIP BK DI8 DO4 2TX-PAC Bus coupler

Name: Switches Plus Components Pty Ltd
Address: 242 Governor Road, Braeside, Victoria, 3195, Braeside, Victoria, 3195, AU
Telephone: +61 3 8587 3200

Code: 2897758

Inline, Bus coupler, EtherNet/IP™, RJ45 jack, Digital inputs: 8, 24 V DC, connection technology: 3-conductor, Digital outputs: 4, 24 V DC, 500 mA, connection technology: 3-conductor, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including Inline connectors and marking fields

Request Quote

Special Order

Datasheet:

Datasheet_2897758

Catalogue:

Phoenix Remote IO-System

Description

The bus coupler with integrated I/Os is intended for use within an EtherNet/IP™ network and represents the link to the Inline I/O system. Up to 61 Inline devices can be connected to the bus coupler. The bus coupler supports a maximum of 8 PCP devices. A corresponding EDS file is available for integrating the Inline station into the programming system. This file can be downloaded via the product at www.phoenixcontact.com/products.
