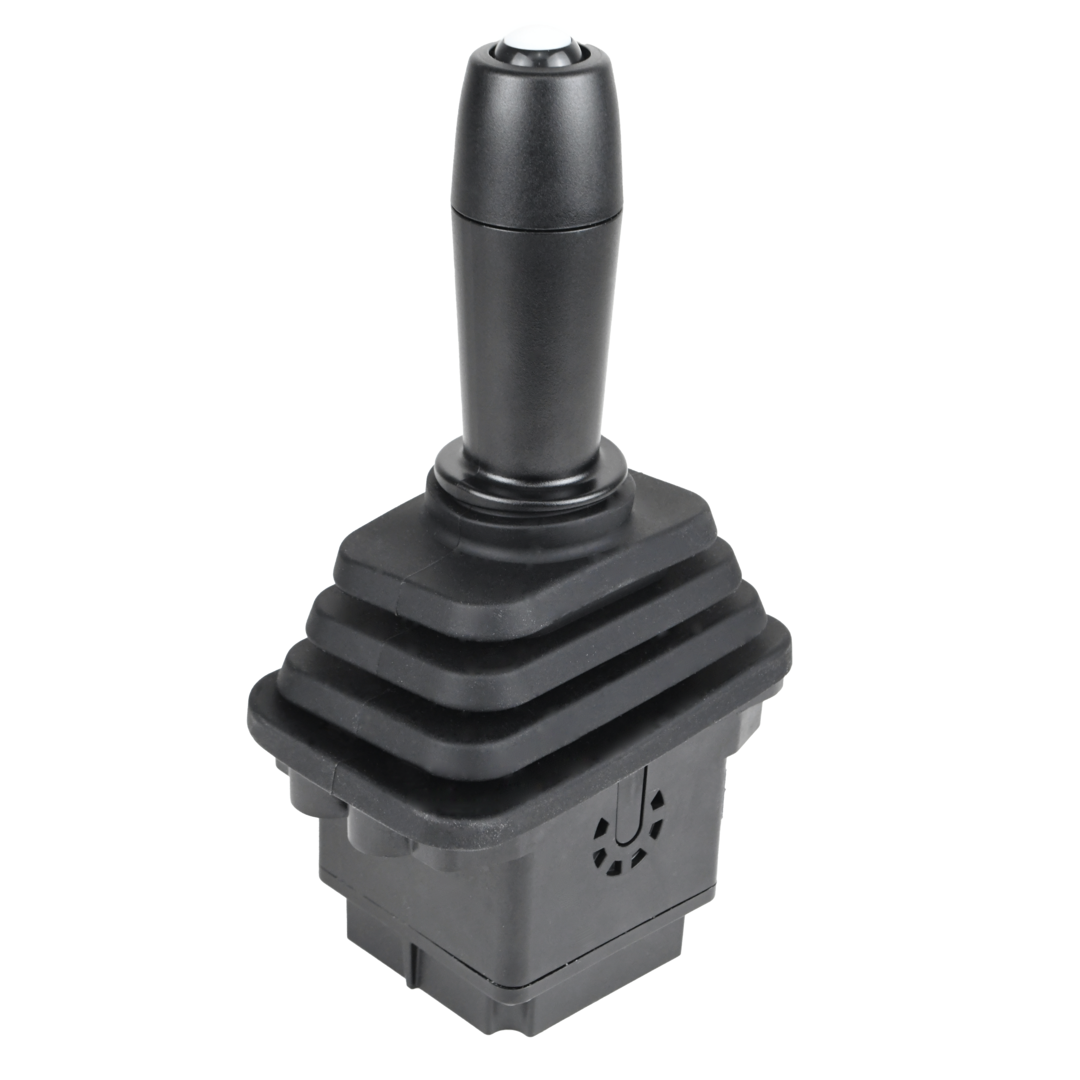

JHL - Cost-Effective, Sealed Joystick

Code: JHLN-xxxxx
The JHLN is a single-axis, bottom-mount joystick that has the same high-performance outputs as OTTO’s full-size JHL joystick.
Request Quote

Special Order


Datasheet:
JHLN_Datasheet
Catalogue:
OTTO_Controls-Full-Line-Catalog.pdf


Description


The JHLN is a single-axis, bottom-mount joystick that has the same high-performance outputs as OTTO’s full-size JHL joystick in a narrower profile for armrest or panel mounting in off-highway vehicle cabs and other commercial equipment.

This Hall effect joystick offers friction hold or smooth spring-return-to-center actuation.

Tall and short handle styles can come with a P9 pushbutton on top of the handle. A multi-position TC switch module with or without arrow legends or backlighting is an option for the tall handle.

  • Friction hold or smooth spring-return-to-center actuation
  • Bottom mount with narrow profile to fit tight spaces
  • Five handle options:
    - Tall with a pushbutton
    - Tall with a 4- or 5-position TC switch module
    - Tall without a switch
    - Short with a pushbutton
    - Short without a switch
  • Outputs:
    - Analog single/redundant output
    - CANOpen
    - J1939
    - J1939 with PLd for functional safety*
    - PWM*
  • Electronics sealed to IP6K8S
  • Excellent EMI/RFI immunity
  • RoHS compliant
