SMARTw programmable time switch
Code: CCT15553

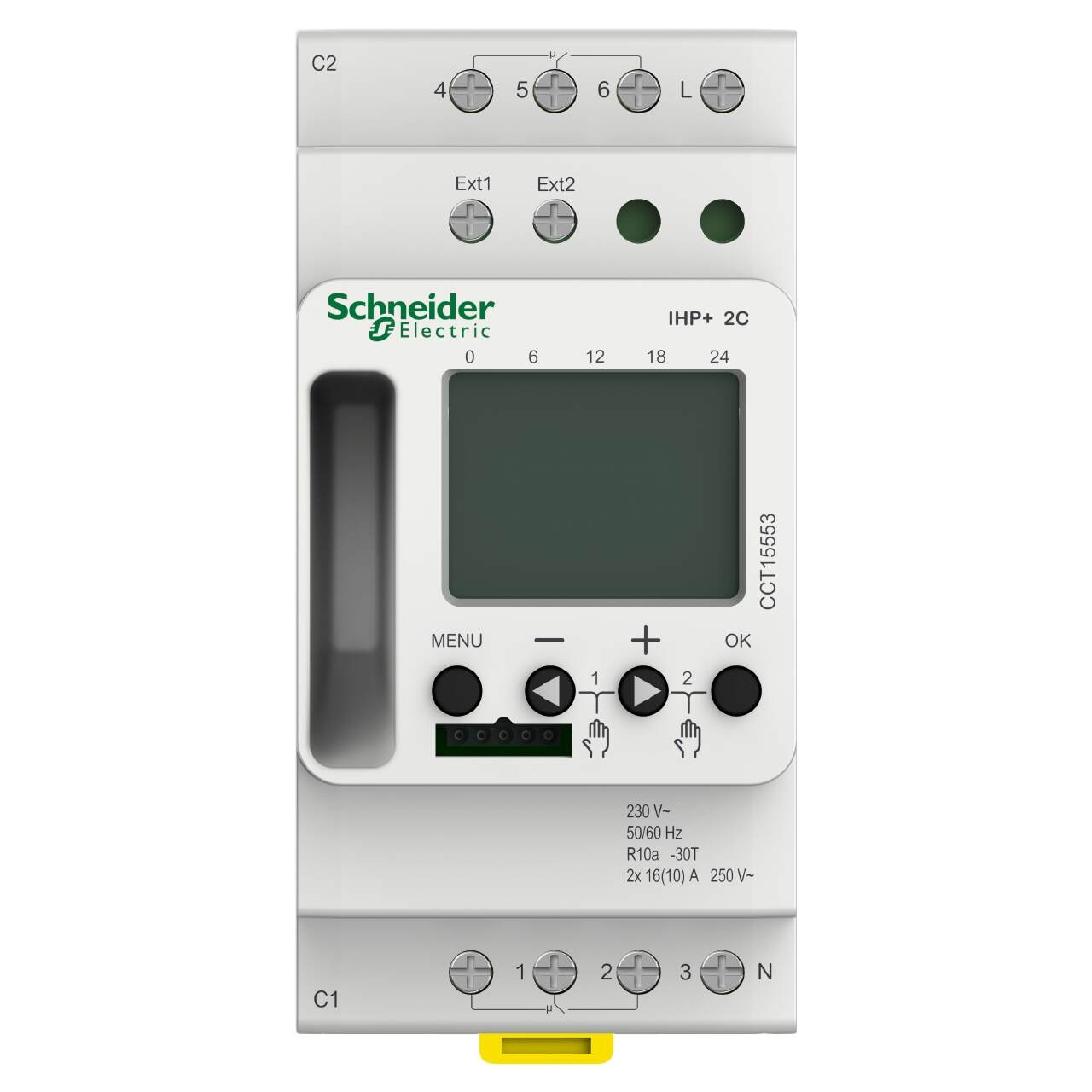

Schneider Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch
$ 111.96
$ 123.16 inc GST
Volume Discount:
4 or more - $ 106.97 (ea)
8 or more - $ 102.73 (ea)
12 or more - $ 97.21 (ea)
16 or more - $ 93.33 (ea)
11 available in stock
Datasheet:
Instructions:
Description
IHP+ SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 2 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily
- Automatically switches loads On and Off according to the user-defined program
- Operates on a weekly cycle, repeating the same program week after week for consistent scheduling and ease of use
- Possible activation of the override control using a switch or push-button through external inputs
- Provides automatic summer or winter time change and allows adjustment based on user location
- Temporarily or permanently overriding of the program by pressing two keys on the product
