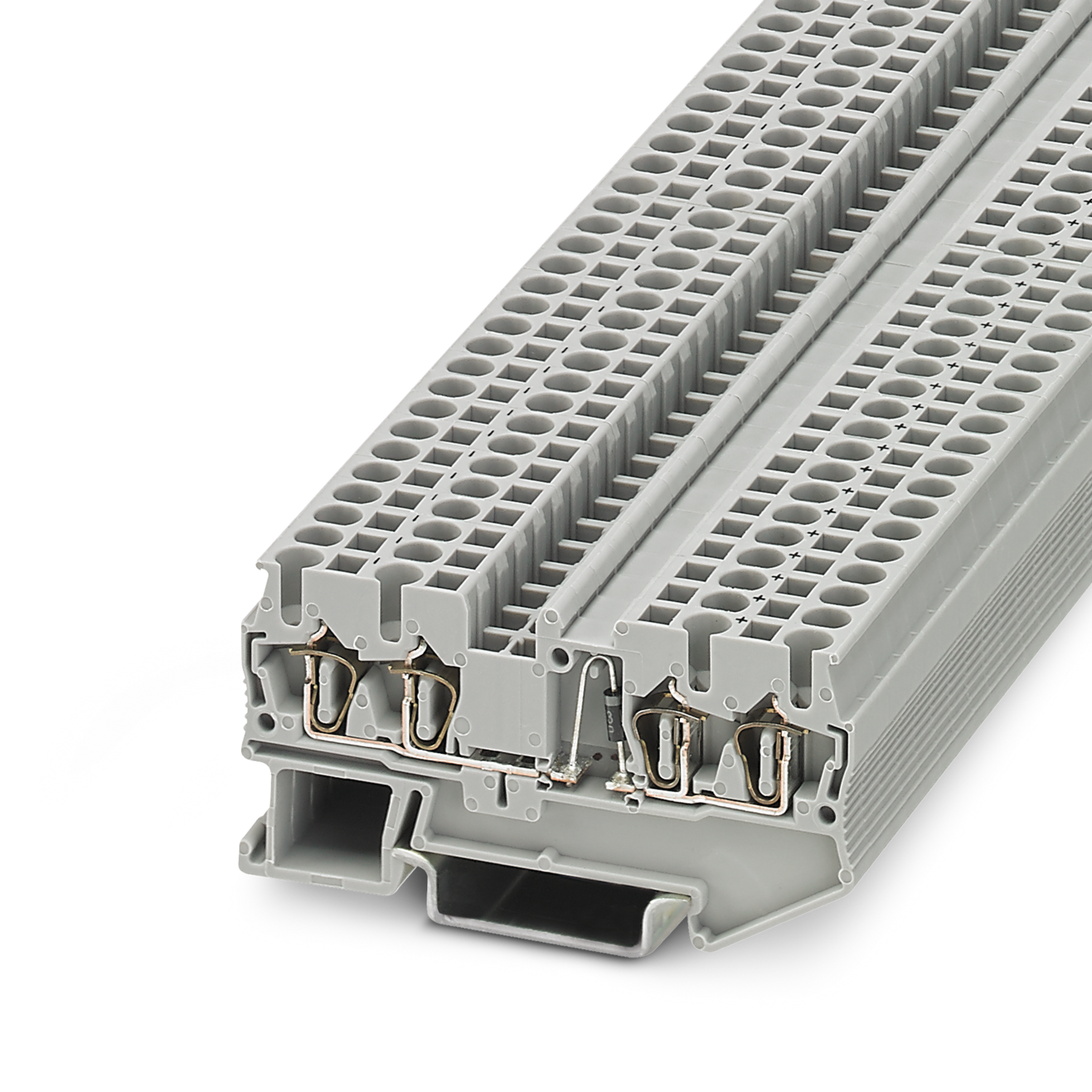

ST 2,5-QUATTRO-DIO/R-L Component terminal block

Name: Switches Plus Components Pty Ltd
Address: 242 Governor Road, Braeside, Victoria, 3195, Braeside, Victoria, 3195, AU
Telephone: +61 3 8587 3200

Code: 3036534

Component terminal block, with integrated diode, nom. voltage: 800 V, nominal current: 0.5 A, connection method: Spring-cage connection, Rated cross section: 1 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Request Quote

Special Order

Datasheet:

Datasheet_3036534

Catalogue:

Phoenix Terminal Blocks

Description

ST is the proven connection technology for vibration-sensitive applications. The spring cage always exerts the same constant force on the conductor, regardless of the influence of the operator. Wiring is carried out easily via the space-saving front connection.
