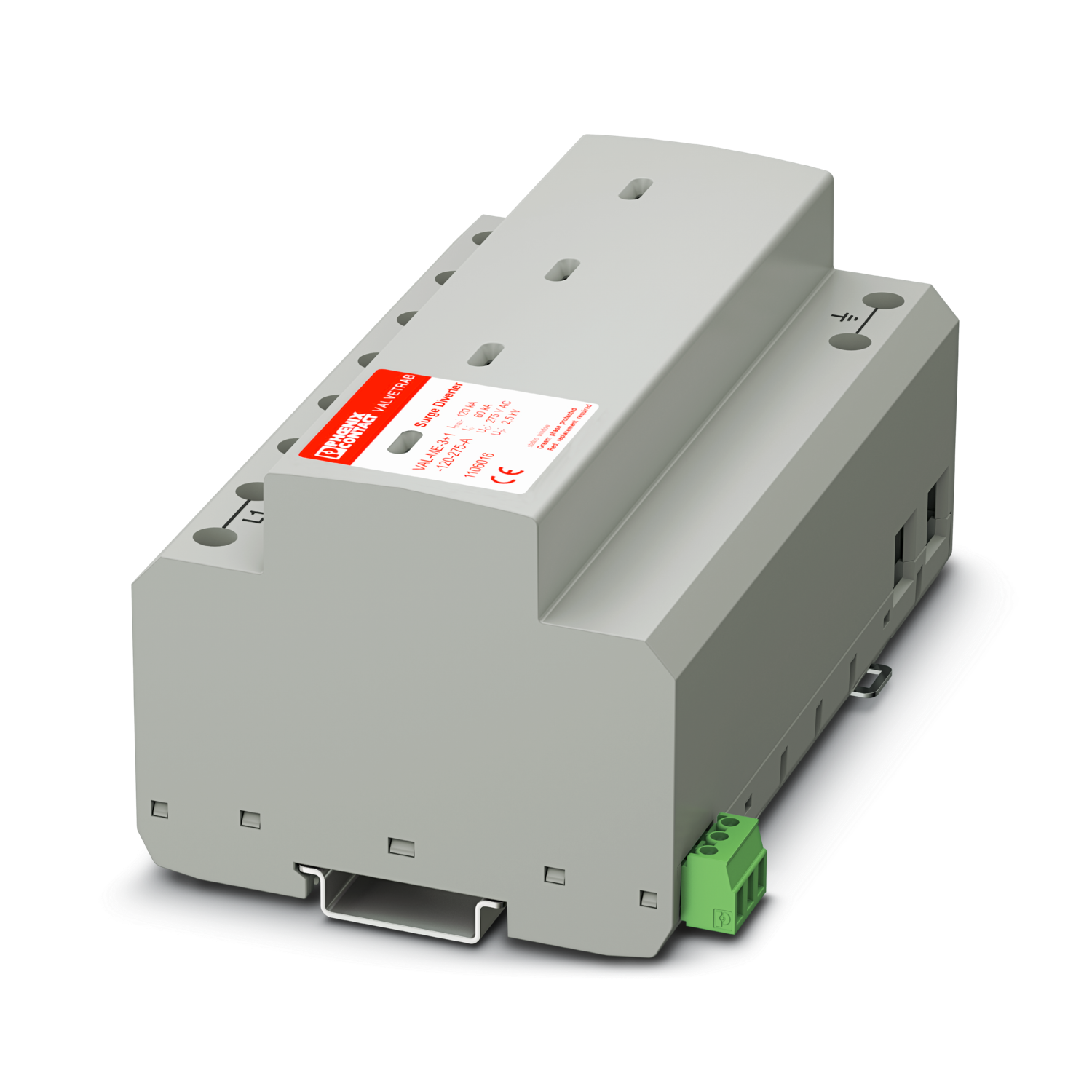

VAL-ME-3+1-100-275-A Type 2 surge arrester

Name: Switches Plus Components Pty Ltd
Address: 242 Governor Road, Braeside, Victoria, 3195, Braeside, Victoria, 3195, AU
Telephone: +61 3 8587 3200

Code: 1106017

Integrated lightning protector, voltage limiting large through-flow surge protector designed according to the requirements of class II tests, can be used for Category C & B (AS/NZS 1768:2007) in low voltage distribution systems. Suitable for 3-phase power supply protection of TN -S and TT power supply and power distribution systems.

Request Quote

Special Order

Datasheet:

Datasheet_1106017

Catalogue:

Phoenix Surge Protection

Description

Type 2 surge protection constitutes the second stage in the protection concept and is installed after the type 1 SPD. To protect the system against damage, e.g., caused by switching operations, the type 2 surge protective device further limits the remaining surge voltage. Type 2 SPDs are used in the subdistribution or machine control cabinets, where no direct lightning currents occur.
