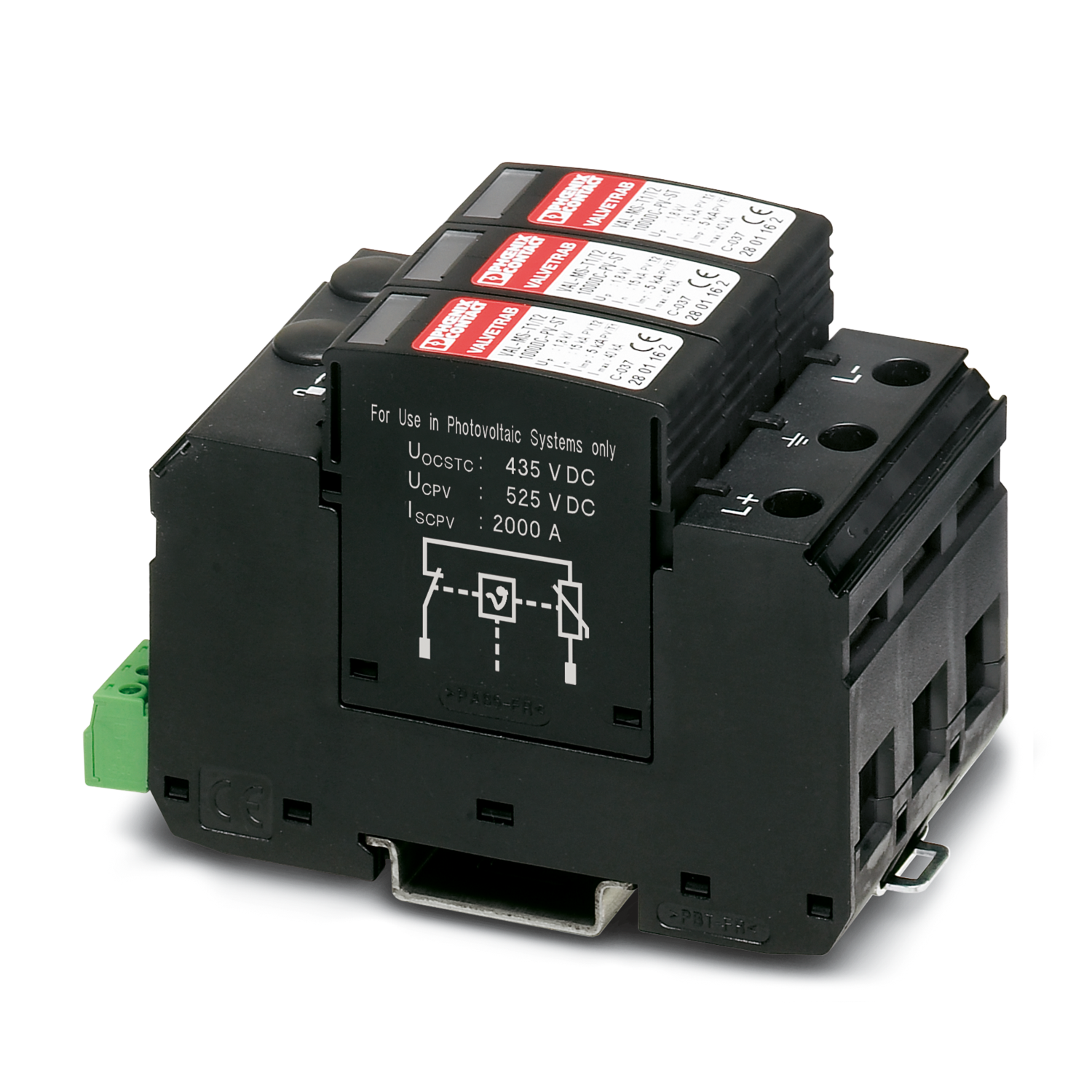

VAL-MS-T1/T2 1000DC-PV/2+V-FM Lightning/surge arrester type 1/2

Name: Switches Plus Components Pty Ltd
Address: 242 Governor Road, Braeside, Victoria, 3195, Braeside, Victoria, 3195, AU
Telephone: +61 3 8587 3200

Code: 2801161

Lightning current arrester / surge protective device for 2-pos. isolated and grounded 1,000 V DC PV voltage systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message at each plug.

Request Quote

Special Order

Datasheet:

Datasheet_2801161

Catalogue:

Phoenix Surge Protection

Description

Type 1 surge protection (lightning current arrester) constitutes the first stage in the protection concept. It can discharge very high energies, e.g., caused by a lightning strike, to ground. Type 1 surge protective devices (SPDs) are usually installed in the feed-in or main distribution system. For additional energies with lower surge voltage pulses, type 1+2 combined lightning current and surge arresters are required.
