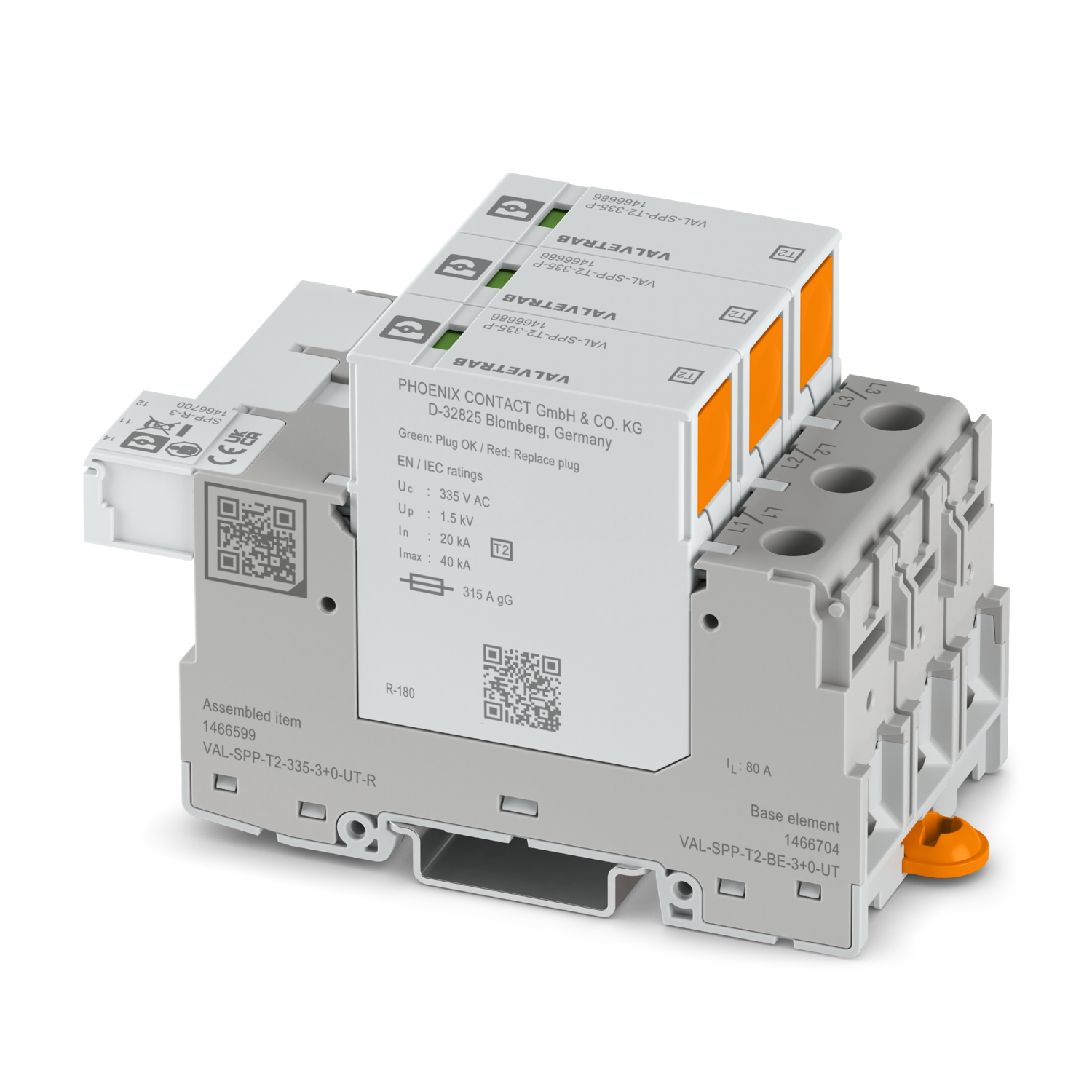

VAL-SPP-T2-335-3+0-UT-R Type 2 surge arrester
Code: 1466599
Plug-in surge arrester, in accordance with Type 2/Class II, for 3-phase power supply networks with combined PE and N installed in one conductor (4-conductor system: L1, L2, L3, PEN), with remote indication contact.
Online Price
$ 126.79
$ 139.47 inc GST
Volume Discount:
5 or more - $ 121.72 (ea)
Delivery in 3-5 weeks from date of order
This is an indent line and therefore once ordered cannot be cancelled or returned and is only available in multiples of 1.
Datasheet:
Catalogue:
Description
Type 2 surge protection constitutes the second stage in the protection concept and is installed after the type 1 SPD. To protect the system against damage, e.g., caused by switching operations, the type 2 surge protective device further limits the remaining surge voltage. Type 2 SPDs are used in the subdistribution or machine control cabinets, where no direct lightning currents occur.
