FLEXTEL 110 ES05VV-F is a flexible cable for mobile service. Suitable for the connection of machinery parts used in manufacturing, including machine tools. Suitable for indoor use. Its installation is recommended in fixed ducts.

Electrical performance
LOW VOLTAGE 300/500 V
TEST VOLTAGE 2000V / 5 min

Thermal performance
Maximum conductor temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum service temperature: 0ºC (mobile service) and -30°C (fixed installation).

Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Reduced halogen emission: Chlorine <15%.

Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical & Oil resistance: Good.
UV resistant based on UNE 211605.
Water resistance: AD5 Jets.

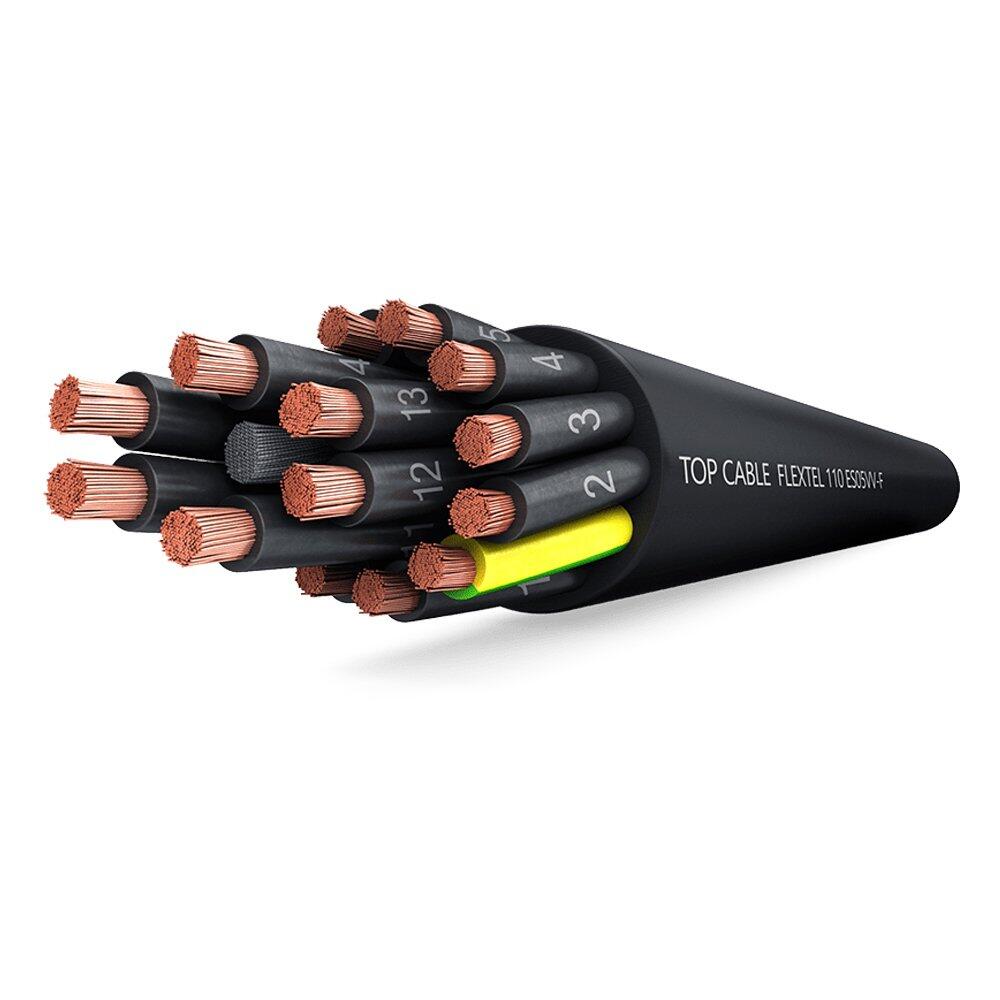

FLEXTEL 110 ES05VV-F cable design

Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation
Flexible PVC, type TI2 according to EN 50363-3.
The standard identification of insulated conductors is Black numbered + Green/yellow

Outer sheath
Flexible PVC, type TM2 according to EN 50363-4-1, black color.
