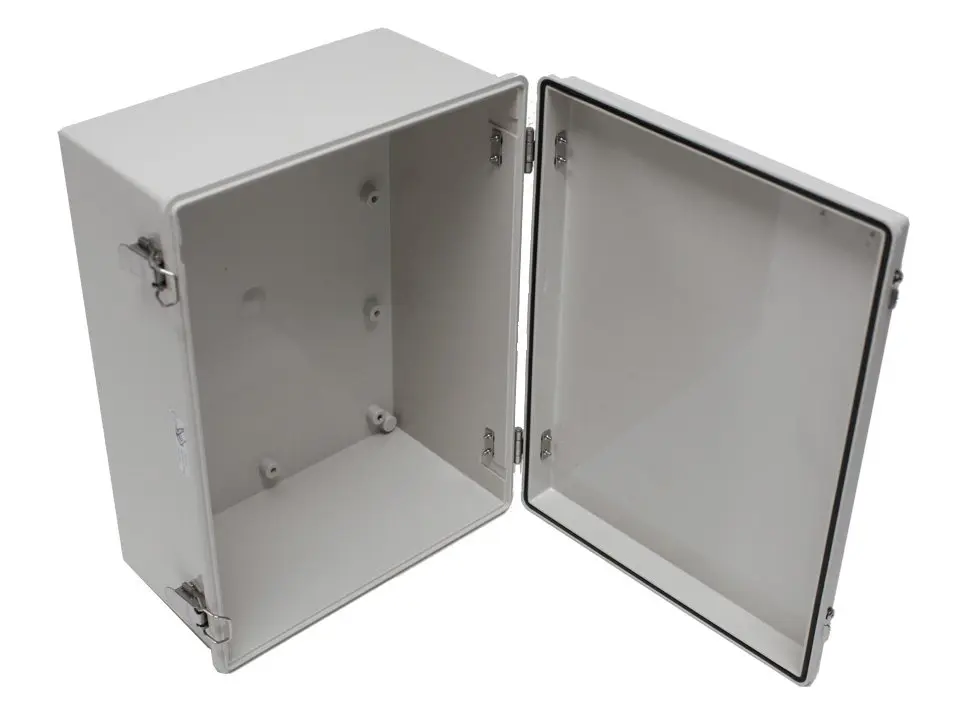

400 x 300 x 180mm Hinged Enclosure Grey ABS Base & Lid

Code: DS-AG-02
IP67 hinged enclosure. Opaque ABS base and lid. 400x300x180mm (HxWxD)

$ 118.00

$ 129.80 inc GST

Volume Discount:
2 or more - $ 106.25 (ea)
4 or more - $ 101.00 (ea)
8 or more - $ 96.00 (ea)
16 or more - $ 91.25 (ea)

4 available in stock

Enquiry

Datasheet:
Control Box.pdf
Catalogue:
DSE Hi-box Enclosures
Drawings:
DS-02-Model.pdf
DS-XX-02.dwg
DS-XX-02.stp


Description


DSE Hi Box manufacture enclosures from a range of plastic materials, including high-quality ABS, AC, polyester and PC. ABS plastic is suitable for indoor use only, but with the addition of polycarbonate, the ABS/PC blend is suitable for outdoor applications. Polyester will provide even greater strength, and resistance to the elements.

They are recognized by the US Underwriters Laboratories, Public Trust International – Germany TUV European Community-CE. The materials used for the boxes are resistant to dust and water, and conform to an IP67, IK08 grade protection and a NEMA 4X rating.
