LUMOTAST - The Illuminating Choice

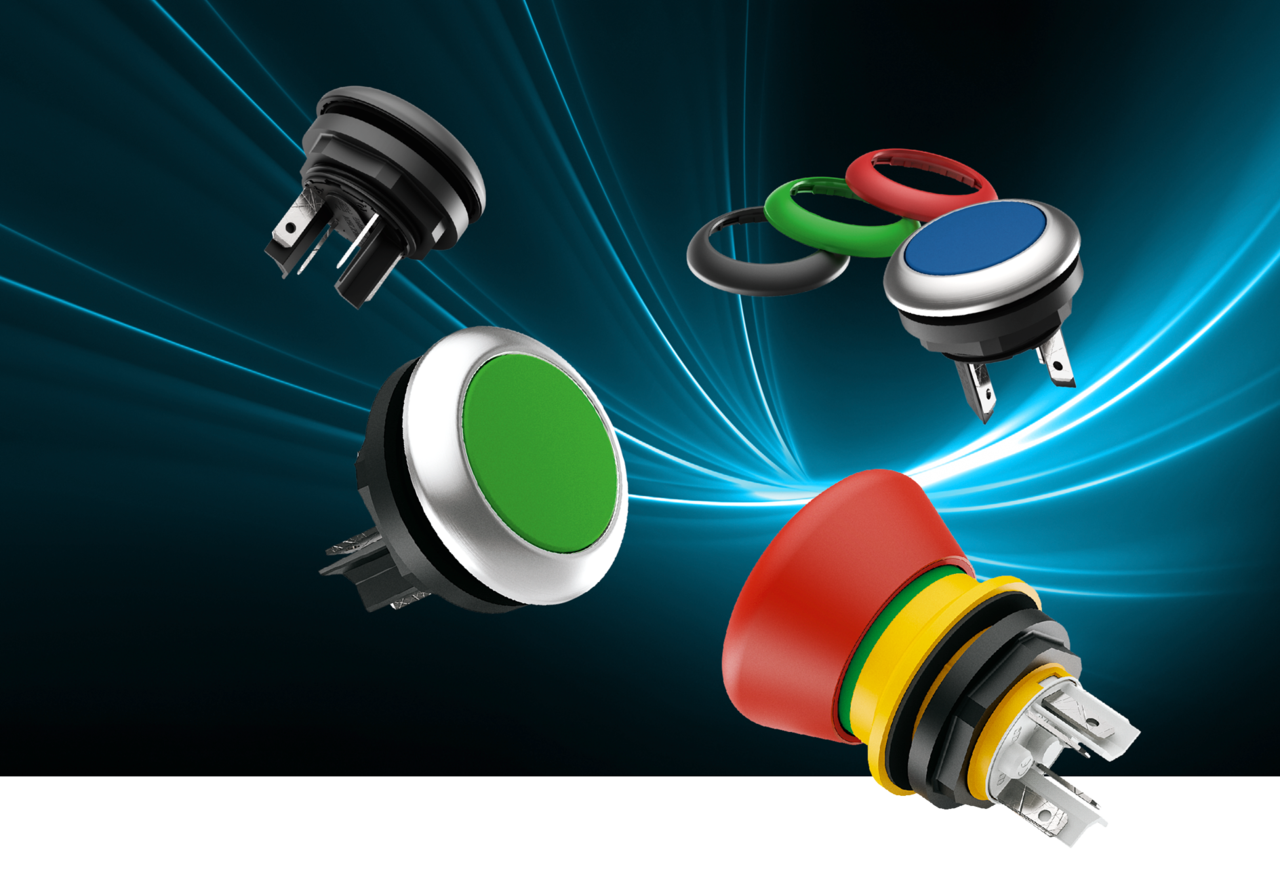

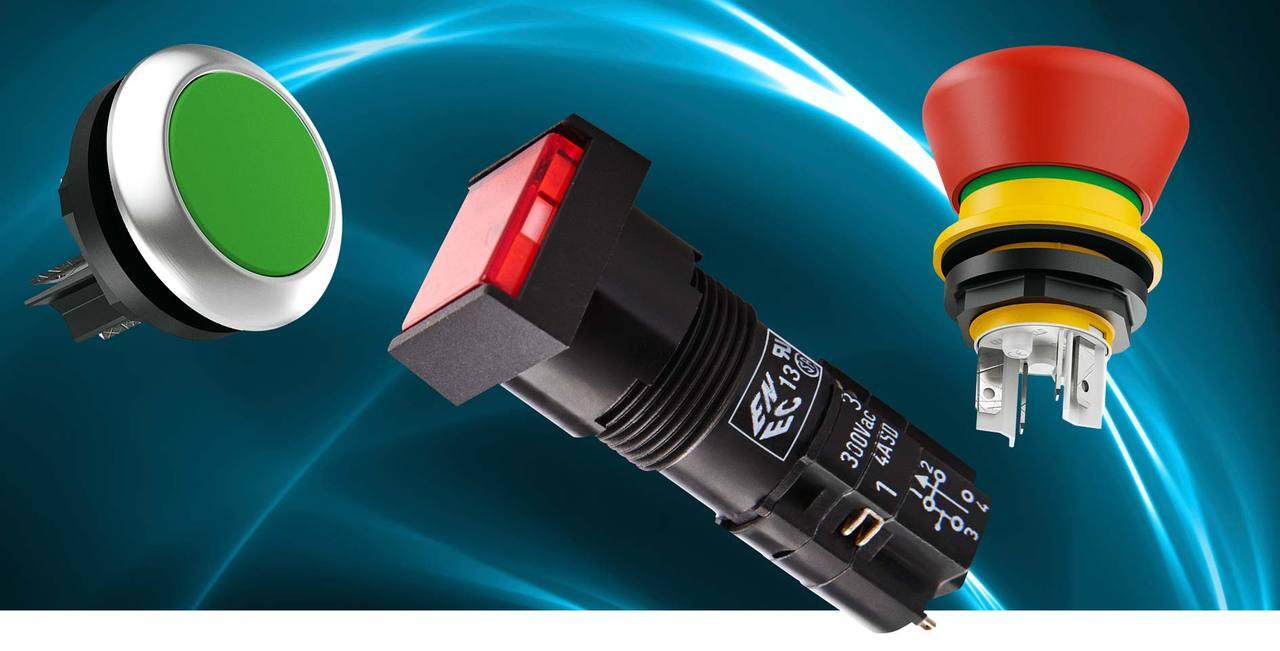

The LUMOTAST series will impress you with its simple assembly and single part housing. The LUMOTAST 16, for example, is designed for use in compact hand-held control units, the LUMOTAST 75 has always been popular with its full-surface illumination, and the LUMOTAST 22 emergency stop is used wherever space is at a premium – in front of or behind the front panel.

Pushbuttons and Emergency Stop Buttons

LUMOTAST 16 is used in automation as well as machine and device construction, especially in hand-held controls. The pushbuttons are attached using a threaded ring in a 16.2 mm mounting hole. LUMOTAST 16 pushbuttons are compact and switch reliably thanks to gold/silver contacts. Completely new: the EMERGENCY STOP active/inactive for handheld controls used with a stationary unit.

• Through the use of the RAFI MICON 5 tactile switch, the pushbuttons and illuminated pushbuttons offer tactile feedback – with a distinct button click

• The emergency stop elements are fitted with up to 3 contacts

• Water jet protection rating IP65 and IP67 on the front

• C-LAB versions: Individual configuration and legending options for pushbuttons and illuminated pushbuttons with additional colored or metallized front rings.

Illuminated Pushbutton

LUMOTAST 75 illuminated pushbuttons and signal lamps have been in use for decades and are the most successful single pushbuttons in RAFI history. The wide range of collar shapes in classic design and the established terminal and legending concept make the LUMOTAST 75 series one of your most reliable components. Keylock switches compatible with the design are also available. The basic version of the LUMOTAST 75 provides IP40 degree of protection as standard. Pushbuttons and signal lamps are also available with IP65 degree of protection according to DIN standard. They come with a 2.5 mm higher collar due to the additional seal.

• Suitable for high currents (max. 250 V/4 A)

• Silver contacts with self-cleaning snap-action contact bridge for safe switching

• Full-surface illumination with LED

• Water jet protection rating IP40 or IP65 on the front

• Solder terminal

Emergency stop

The extremely compact LUMOTAST 22 emergency stop with quick-connect terminals is ideal wherever an emergency stop or emergency power off is required and space is tight in front of or behind the front panel. The emergency stop is also available with a PCB terminal, see RAFIX 22 FS+ control component program.

• Night design possible

• Water jet protection rating IP65 on the front

• Switching elements with silver contacts (max. 250 V/4 A)

• Quick-connect terminal

• Complies with DIN EN ISO 13850

• Illumination of the arrows possible

• Resetting by turning
