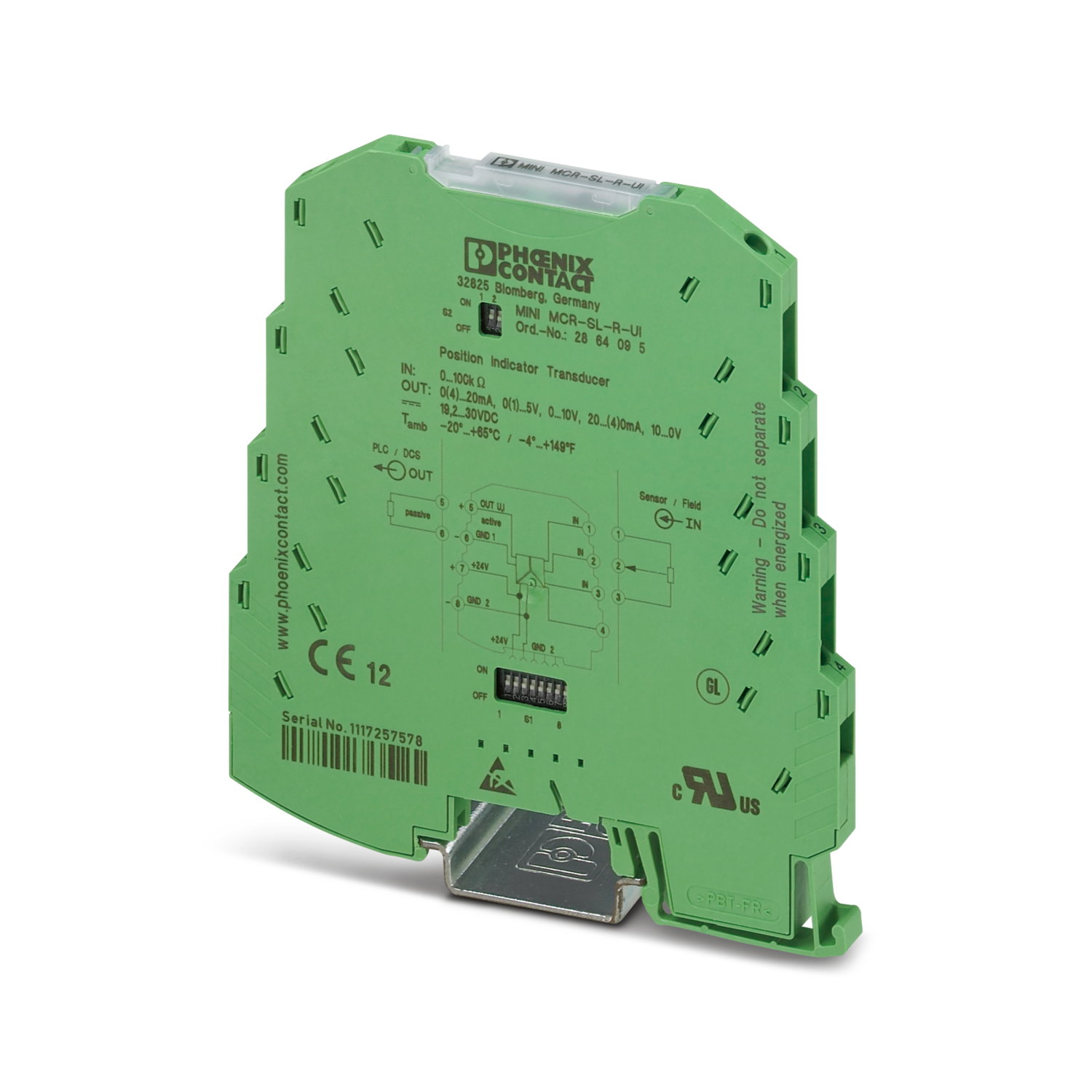

MINI MCR-SL-R-UI Resistance/potiposition transducer
$ 283.97
$ 312.37 inc GST
Delivery in 7-11 days from date of order
This is an indent line and therefore once ordered cannot be cancelled or returned and is only available in multiples of 1.
Description
The narrow 6.2 mm MINI MCR-SL-R-UI... potiposition transducer converts potentiometer positions into a standard analog signal on a percentage basis. If the potentiometer range cannot be utilized to the full, an externally accessible slide switch is used to set the upper and lower potentiometer final values. The output signal between 0% and 100% is based on this set final value. The DIP switches, which can be accessed on the side of the housing, are used to configure the following parameters: - Output signal - Automatic potentiometer detection - Wire-break detection slider - Type of error evaluation Power (19.2 V DC to 30 V DC) can either be supplied via the connection terminal blocks of the modules or in conjunction with the DIN rail connector.
