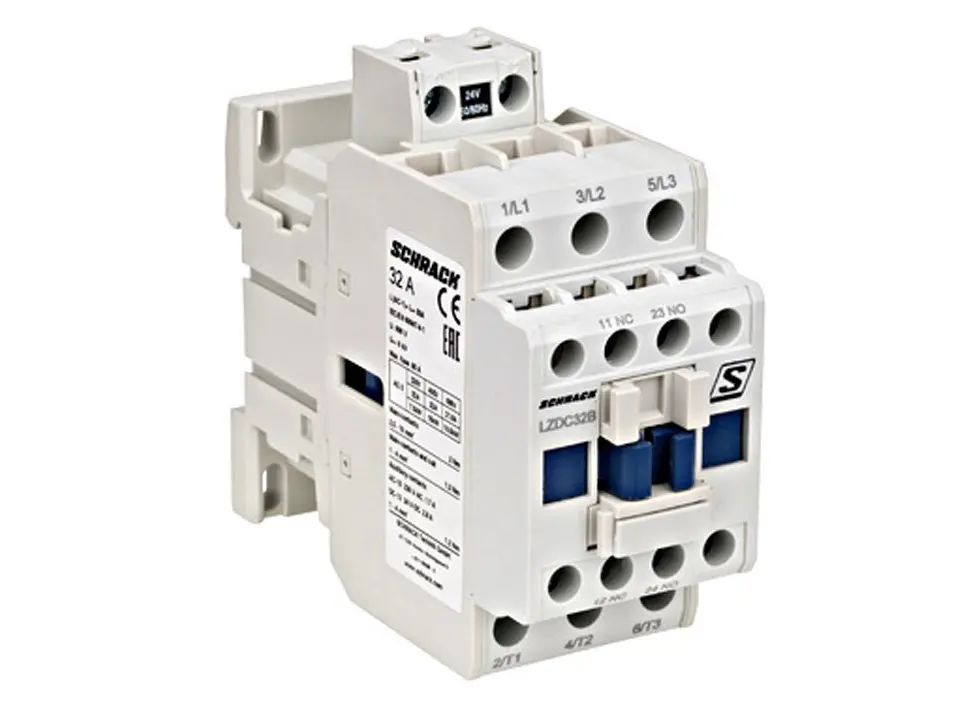

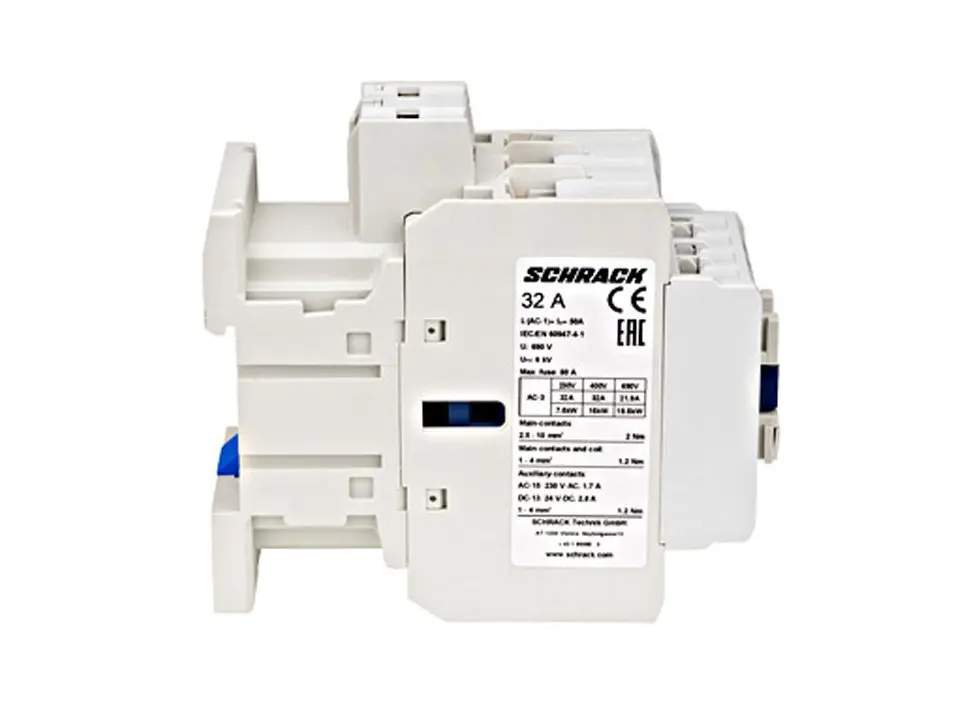

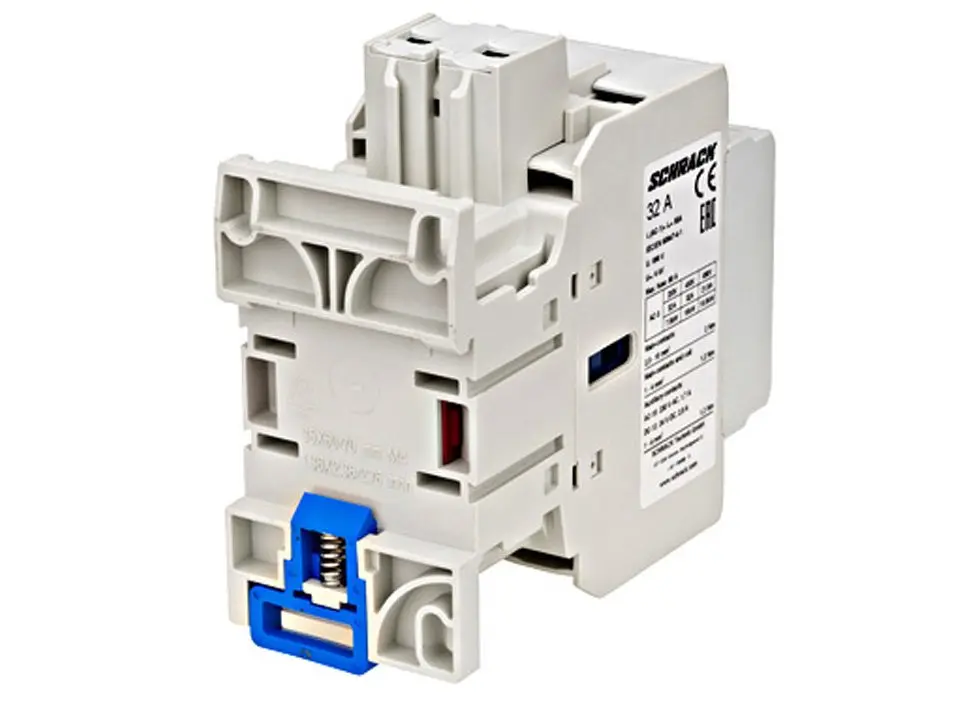

15kW Contactor 24 VAC

Code: LZDC32B0
Schrack CUBICO Classic Contactor, 3-pole, 15kW, 32A, 1NO+1NC, 24VAC

$ 52.25

$ 57.48 inc GST

Volume Discount:
5 or more - $ 49.75 (ea)
10 or more - $ 47.50 (ea)
20 or more - $ 45.25 (ea)
50 or more - $ 43.00 (ea)

2 available in stock

Enquiry

Datasheet:
h_lzdc32xx--_en.pdf
Catalogue:
Schrack Cubico Contactors


Description


Contactors are electromagnetic switches which are able to connect or disconnect at higher loads than relays. They are used when a high level of voltage resistance (230V/400V) is needed (for high-power appliances). What relays and contactors have in common is that both are used in control circuits. Contactors are controlled remotely. They can have 2 switching positions (normally, they switch as monostable). In contrary to relays contactors always have 2 disconnection points for each contact. The reasons are mostly safety and wear..

The construction of a contactor consists of: a casing, electrical connections, a magnetic coil, a fixed coil core, a movable bobbin, and switching contacts as well as bobbin return springs.
