G3C Group

Otto High Performance, Heavy Equipment and Material Handling Grips


Operator presence, trigger switches, side keypads, faceplate keypads and z-axis rotation are the exciting features of OTTO’s ergonomically designed and customizable G3-C Universal Grip. Its high switch content capability increases the level of functionality, benefiting anyone who requires versatility in a grip.

The operator presence uses a sensor to detect the presence of the operator's hand on the grip. The new trigger switch selections for the back of the grip include single trigger, dual momentary trigger and dual maintained trigger. Keypads are available on both the faceplate, with up to 8 switches, and on either side of the grip as a side keypad, with up to 10 switches on each side (G3-CK). Backlighting is also an option. The z-axis feature allows for a +/- 25° horizontal rotation of the grip.

With numerous faceplate selections, the G3-C can be customized from applications requiring basic control functions to those requiring high switch content. The G3-C can be panel mounted as a fixed control grip, panel mounted with z-axis, or it can be mounted on an OTTO JH, JHL and JHM joystick with or without z-axis.

The G3-C is designed for use with OTTO’s pushbuttons, rockers, toggles and Hall effect switches, and can handle many types of high-performance industrial vehicle and machinery applications.

Features

  • The grip can be used with either the left or right hand

  • Operator presence option

  • Z-axis option with +/- 25 rotation⁰

  • Numerous standard faceplate designs incorporating up to 8 control switches (G3-C) or an 8-button keypad (G3-CK)

  • 10-button side keypad option (G3-CK)

  • Switch selections for the back of the grip handle include pushbutton, thumbwheel and trigger switches

  • Various mounting & termination styles available

  • Includes mounting adapter with boot ring

Benefits

  • Modular design provides high level of customization and reduces the need for tooling charges

  • Compatible with the OTTO JH, JHL and JHM series Hall effect Joysticks

  • Accommodates a full line of OTTO pushbutton, rocker, toggle, and Hall effect switches

Like to know more?

Download brochure below or visit Otto website https://www.otto-controls.com/products/grips/commercialgrips/g3-c-universal-contour-grip

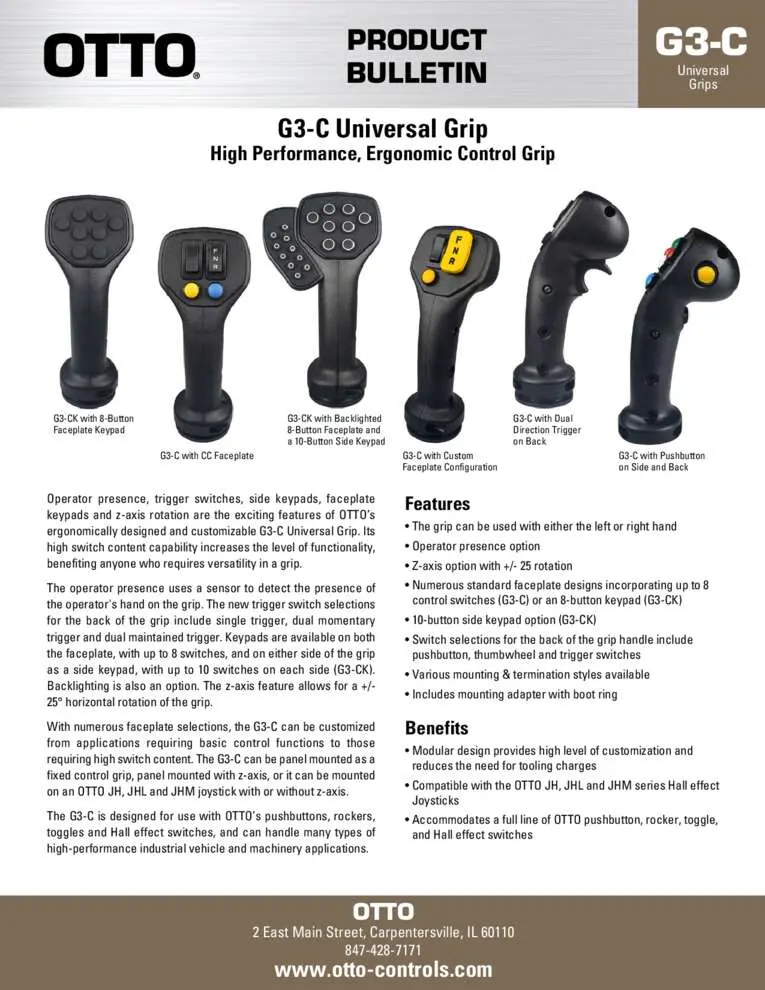

G3_C_and_G3_CK_Product_Bulletin Cover Page
G3C Product Bulletin
