LP30M-D_H__1B - Custom Start Stop Green LED - Side View

Rugged start/stop switches for vehicles in demanding applications

Otto’s LP30M offers rugged, sealed construction with LED illumination in a large, 30mm diameter, button. This precision snap-action switch is designed for use in off-highway, material handling, industrial controls, marine, medical and other demanding applications. Choose from the standard mounting styles and electrical ratings, or contact us for custom configurations.

The LP30M features IP64 dusttight and moistureproof or IP68S watertight sealed construction. In addition, sealed terminals protect the contact area from hostile environments and solder flux on both sealed and unsealed models. This switch is offered with low profile or concave style buttons in translucent white, red or amber with or without legends/icons. Six standard LED colors are available.

The LP30M is available in standard, and low operating force utilising OTTO’s quality precision snap-action switch mechanism. This momentary switch is available as normally open (NO) or two circuit. High contact pressure, amazingly low contact resistance and extremely low contact bounce are all the result of the OTTO snap-action mechanism. Extra-long electrical life and precise trip point offer added value and precision operation.

  • Low-profile dome or concave-style button in translucent white, red or amber

  • Six standard LED colors: red, green, amber, blue, deep green and white

  • Button can be laser etched or pad printed with words or legends

  • Anodized aluminum housing can be laser etched with words or legends that will not fade or wear with continuous use

  • Snap-action mechanism provides tactile feedback

  • Normal Open (NO) or Two-Circuit (NO/NC) configurations

  • Accommodates 2, 12 and 24VDC power; includes reverse voltage protection

  • Switch works at logic level as well as up to 5A resistive

  • Watertight to IP68S or moistureproof and dusttight to IP64

  • Withstands -40°C to 85°C operating temperatures

  • Includes hardware

Like to know more?

Download our brochure below or visit Otto's website: https://www.otto-controls.com/products/electromechanicalswitches/pushbuttonswitches/lp30m

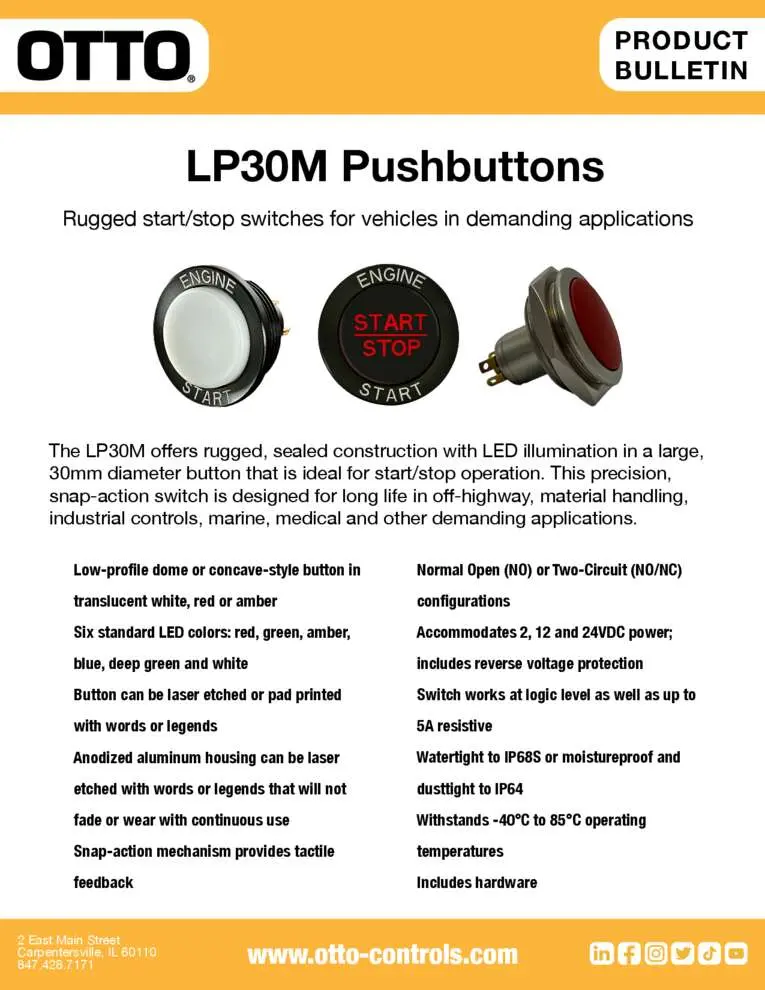

Otto LP30M Bulletin Cover Page
Otto LP30M Bulletin
