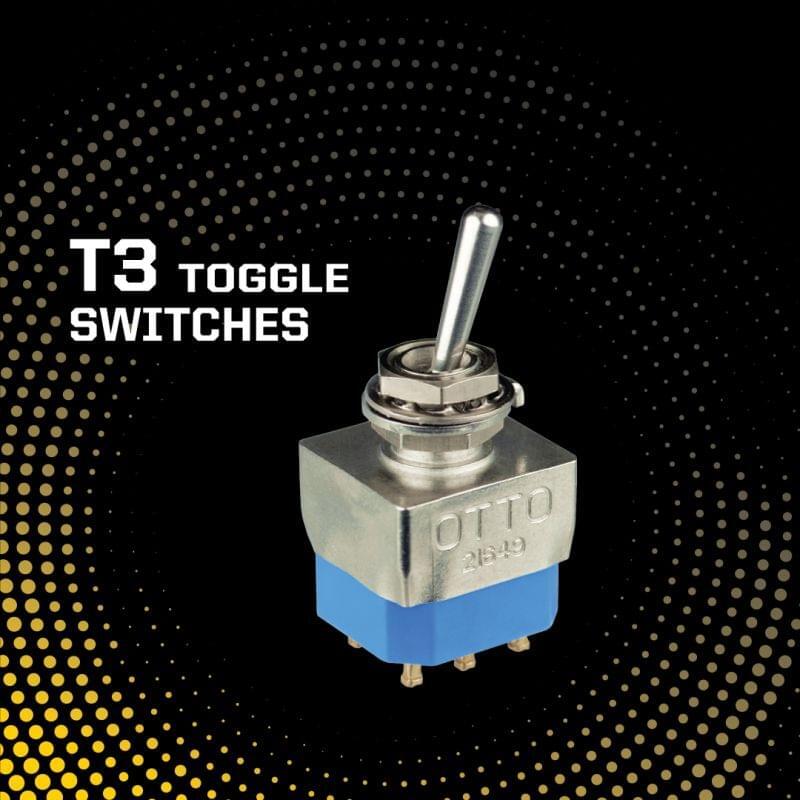

The T3 Miniature Toggle Switch is MIL-Qualified. Sealed. Versatile.

Engineered for high performance, the T3 is designed to operate flawlessly in the harshest environments — from extreme temps to vibration-heavy settings.

🔥 Highlights:
✔️ Shorter behind panel
✔️ MIL-DTL-3950 & MIL-PRF-8805 qualified
✔️ Snap-action actuation
✔️ Single or double pole configurations
✔️ Positive tactile response

These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation, and feature the unique OTTO snap-action switch actuation in conjunction with a unique toggle actuator design.

High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps. Choose sealed one or two pole circuitry, 15/32-32 sealed or 1/4-40 unsealed bushing construction, momentary and/or maintained operation. The 15/32-32 bushing model is also available with lever lockout toggle feature or thumb button actuators.

Molded-in terminals seal the contacts against moisture and solder flux wicking. The front-panel side of 15/32-32 bushing models are sealed against water and other liquids per MIL-DTL-83731. In addition to the single turret solder terminal specified in MIL-DTL-83731, we also offer two different lengths of pins for printed circuit soldering.

When failure is not an option, choose a switch that delivers under pressure.
