Why some controls use a two-stage trigger

In some systems, a single input carries more than one outcome.

That might be:
• Activating a function, then escalating it
• Enabling a system, then executing an action
• Moving from standby to active control

This typically shows up in controls built into a handle or grip, such as:

• Flight control grips
• Hand-operated machinery
• Mobile equipment controls
• Industrial operator interfaces

In these setups, the operator works from a fixed position on the control and needs to:

• Maintain grip
• Stay focused on the task
• Access more than one function without repositioning

The design challenge

Adding more buttons is one option, but it comes with trade-offs:

• More wiring
• More space required
• More opportunity for incorrect input

In many cases, the control needs to stay simple while still allowing multiple actions from a single input.

Why two-stage triggers are used

A two-stage trigger introduces a defined sequence into a single input.

• First stage: initial function
• Second stage: deliberate action after passing a detent

The change in force is controlled.

It requires a deliberate increase in pressure to move from one stage to the next.

Without that separation, the second function can be triggered too easily, especially when the operator is working quickly or under load.

That separation:
• Reduces unintended second-stage activation
• Helps separate one action from the next

When multiple functions are assigned to a single input, that separation becomes important.

Where it matters most

Two-stage triggers are used where inputs need to be consistent and repeatable.

• Equipment with frequent operator input
• Systems operating in demanding conditions
• Applications where unintended activation needs to be controlled

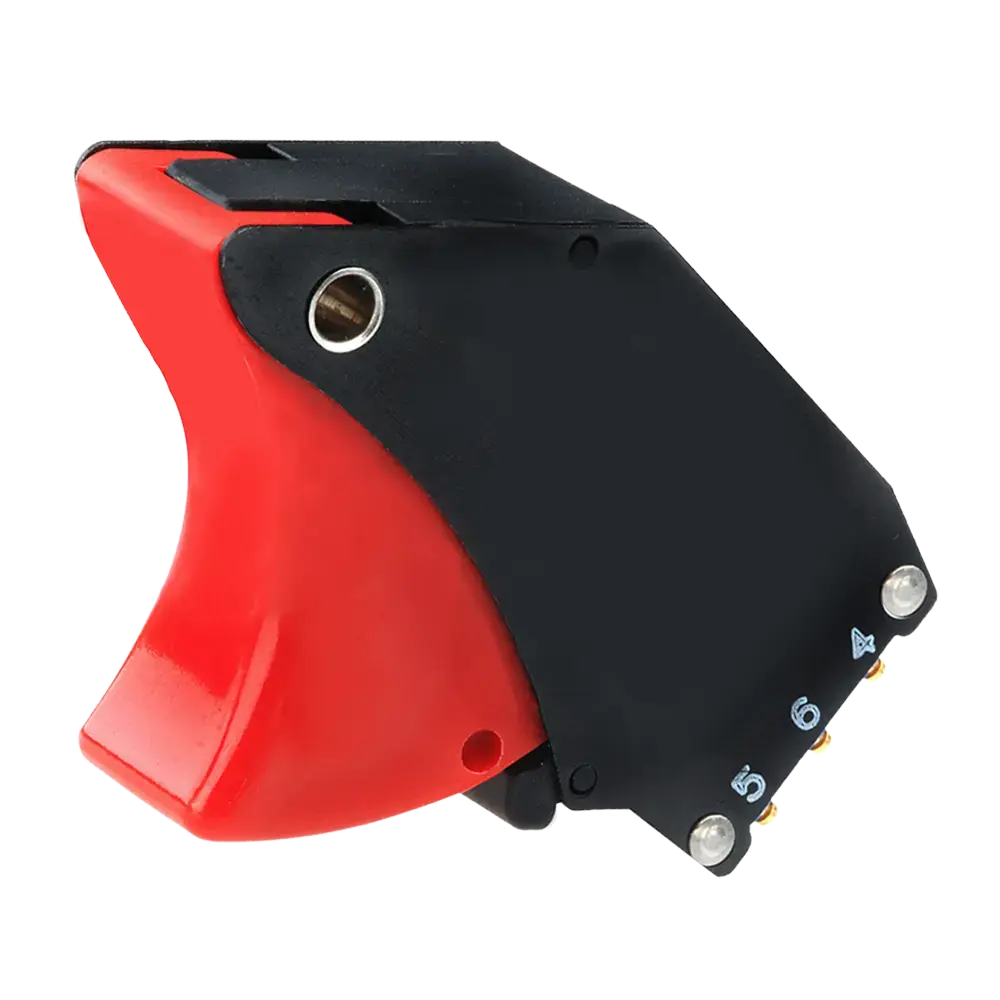

How the OTTO U2 Series fits

The OTTO Controls U2 Series is designed for these types of control requirements.

Across the range:
• Two-stage configurations include a defined detent between stages
• Actuation force is set to clearly separate each function
• Variants are available for both military-qualified and commercial applications

Military-qualified variants are built to MIL-PRF-8805, with defined requirements for actuation, durability and performance consistency.

For example, the U2-025 requires 2.25 lbs of force to actuate the first stage and 6.5 lbs to pass through a defined detent and activate the second stage. That change in force creates a clear separation between actions and helps reduce unintended second-stage activation.

The U2 range also allows for:
• One-step or two-step operation depending on the application
• Circuit options including DPDT, 4PDT and logic level
• Environmental variations such as dusttight and IP-rated designs
• Electrical life up to 50,000 cycles, supporting consistent operation in applications with frequent input

What this improves

When the control input is designed this way:

• Operator input is more controlled
• Multiple functions can be handled from a single trigger
• The interface remains compact and consistent
• Unintended escalation of an action is reduced

A two-stage trigger makes it possible to control more than one function from a single input while keeping each action deliberate.
