Finger Joystick with Pushbutton Option

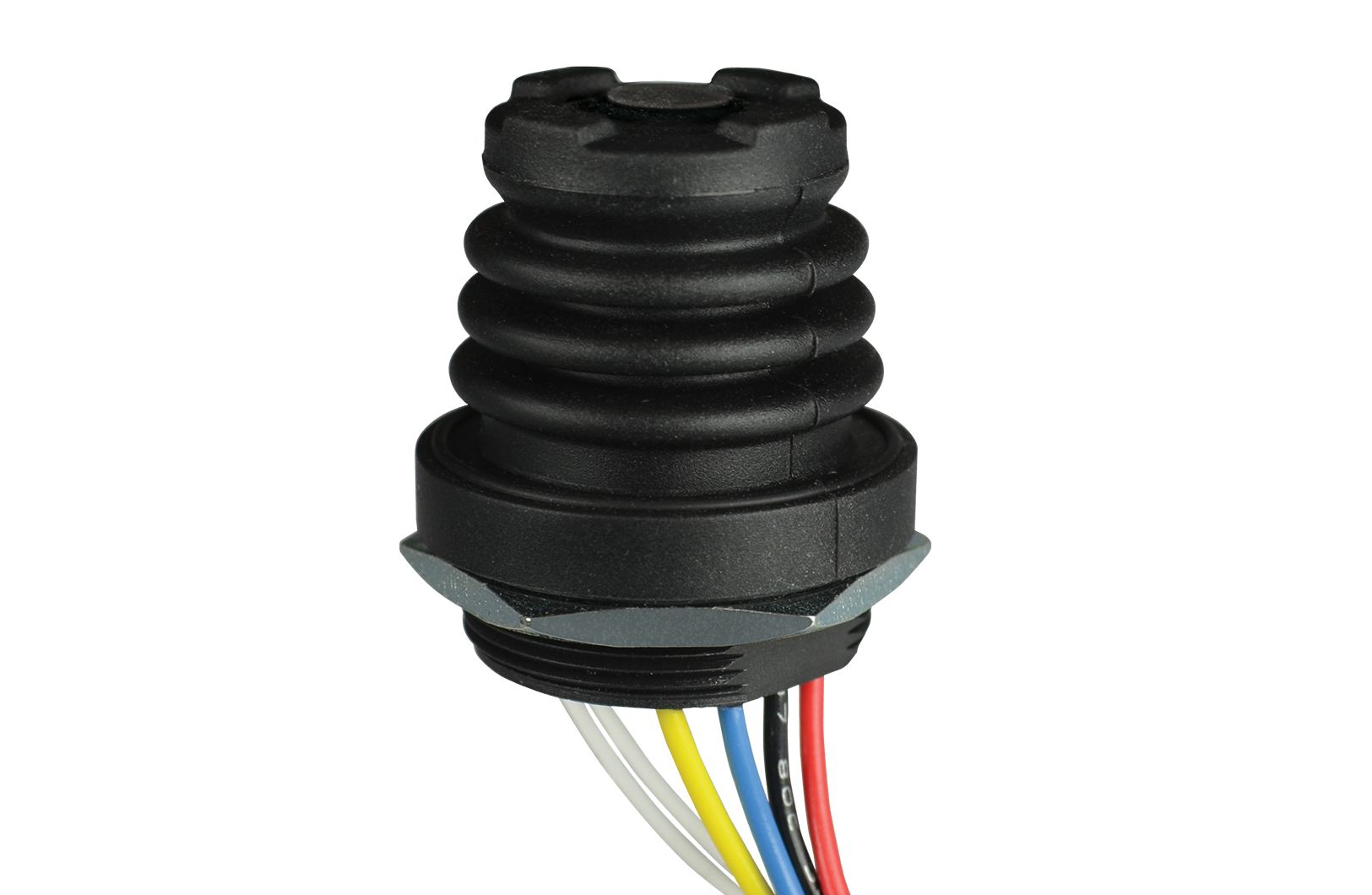

Our HTLT Series miniature Hall Effect joystick from OTTO is a proportional linear output finger joystick with a pushbutton option. With a lower base price than the HTL, the HTLT features 6 different button styles, multiple output configurations and 3 mounting options including top mount with threaded housing.

Gating options include omnidirectional square on axis guided feel, gated single axis return to center, gated dual axis return to center and omnidirectional round smooth feel. The HTLT offers excellent tactile feedback and is available with a mechanical seal of either dust tight or watertight per IP68S. All electronics are sealed to IP68S.

Featuring contactless Hall Effect technology, the HTLT is designed to withstand harsh environments and works well in the industrial, medical, unmanned vehicle and off-highway industries for applications such as remote controls, armrest integration, control panels and belly boxes.

Features

• One/two axis gated or 360º

• Pushbutton option

• Electronics sealed to IP68S

• Dusttight or Watertight per IP68S option

• 3.3V SPI output option

• Single or redundant analog output options

• PWM output option

• 3 million cycle mechanical life

• Tested for harsh environments

• Great for industrial, medical, unmanned vehicle and off-highway industries

Like to know more?

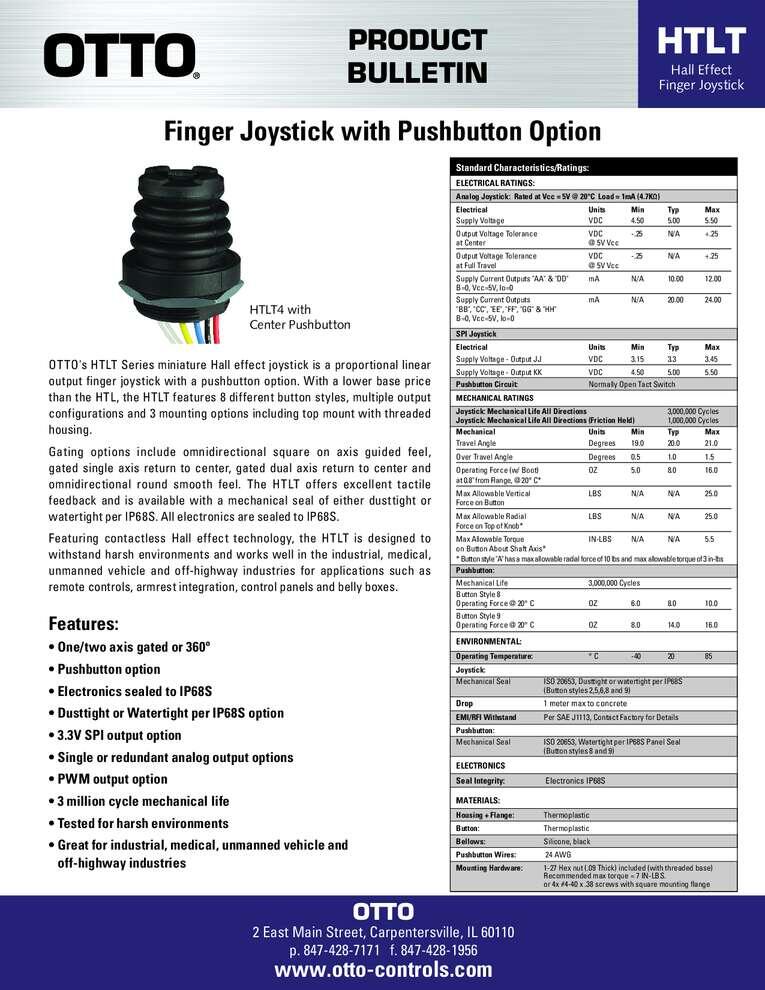

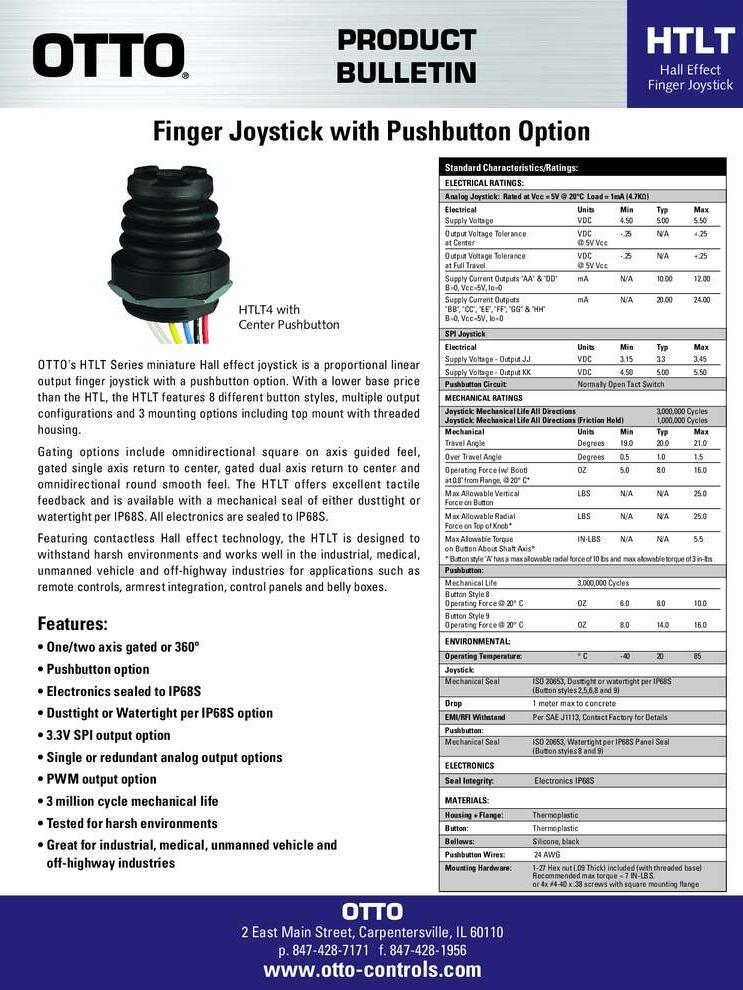

Download our brochure below or visit Otto's website
