What defines a reliable operator switch in demanding environments

Operator switches sit at the front of the system and see the most use. They take whatever the environment throws at them.

Where things start to fall apart is usually at the interface.

In material handling, mobile equipment, marine and outdoor installations, switches see:

• Dust and contamination
• Moisture and washdown
• Temperature swings
• Vibration and repeated use

These conditions affect how the switch seals, how the contacts perform, and how the mechanism operates.

Environmental sealing

Ingress is one of the most common causes of failure.

Dust and moisture don’t just affect the outside of the switch. They reach the contact area and change how it performs over time.

Sealing at the body matters, but so does sealing at the terminals. If the contact area is exposed, the switch can degrade even when the front is protected.

Contact behaviour

Electrical performance can be overlooked.

Contact resistance, contact pressure and contact bounce all affect how the switch behaves in operation.

Higher contact resistance leads to heat build-up, inconsistent contact shows up as intermittent signals, and contact bounce affects control inputs, particularly at logic level.

Mechanical action

The way the switch actuates matters.

Consistent force, a defined trip point and clear feedback all contribute to reliable input, particularly where operators are working quickly or wearing gloves.

Variation in actuation leads to variation in input.

Visibility also plays a role. In low-light conditions or fast-paced environments, illuminated pushbuttons make it easier to identify controls and confirm operation, particularly where operators need to respond quickly.

Sealing, contact behaviour, mechanical action and visibility all need to be addressed in the switch design for consistent operation.

The LP30M in application

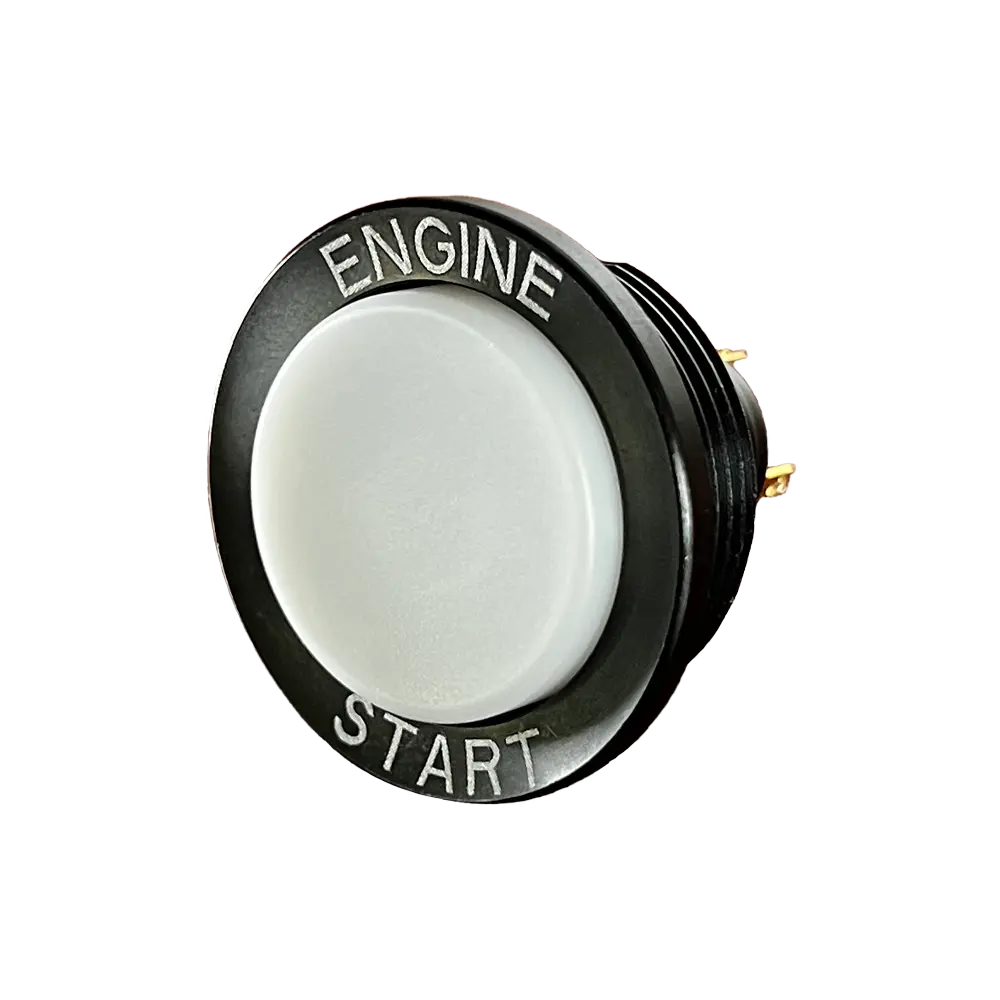

The OTTO LP30M is designed around these conditions.

Sealing is applied to both the switch body and the terminals, with options for IP64 and IP68S protection. This limits contamination reaching the contact area.

The snap-action mechanism maintains high contact pressure with low contact resistance and low contact bounce, supporting stable electrical performance.

Mechanical operation is consistent, with a defined trip point and repeatable actuation across cycles.

The large 30mm illuminated button improves visibility and operator feedback, particularly in low-light or high-activity environments.

The switch supports 2V, 12V and 24VDC systems, including logic level applications, and includes reverse voltage protection, allowing it to be integrated across different control systems.

Operating temperature from -55°C to +85°C allows it to perform in both cold and high heat environments without affecting operation.

Why it matters in operation

When these factors are controlled, operator input remains consistent.

The switch responds consistently, the signal remains stable, and performance holds over time. That’s what reduces faults and rework.
