Why panel density isn’t just a space problem

As panels get denser, most of the focus goes on space. How much can fit, how tight the layout can be, how far components can be reduced.

That matters, but it’s not where most of the friction comes from.

The bigger shift is this: as density increases, the impact of inconsistency grows.

In a larger panel, there’s more tolerance. You can route around things, adjust the layout, and work with a bit of variation.

In a tighter panel, that tolerance disappears.

Where things start to slow down

It doesn’t usually come from one decision. It builds up across the panel.

You might mix terminal types to make something fit, use different marking styles in different sections, or handle potential distribution slightly differently across the layout.

Individually, none of that stands out.

But together, it starts to change how the panel comes together.

Variation across terminal systems can add complexity, slow wiring, and make layouts harder to follow. Fault finding becomes less straightforward, and even small changes take more effort than they should.

That’s where density starts to affect more than just space. It starts to affect how usable the panel is.

Why going smaller isn’t always the fix

Reducing size sounds like the obvious solution.

But in some cases, going smaller can introduce trade-offs, depending on the terminal system. That might mean changes to accessories, marking, or test access.

So while space is saved, consistency can start to drop away.

A different way to approach compact design

A more effective approach is to reduce size without changing how the rest of the panel works.

That means keeping consistency across bridging, marking, testing, and installation.

This is where system-based terminal platforms come into play.

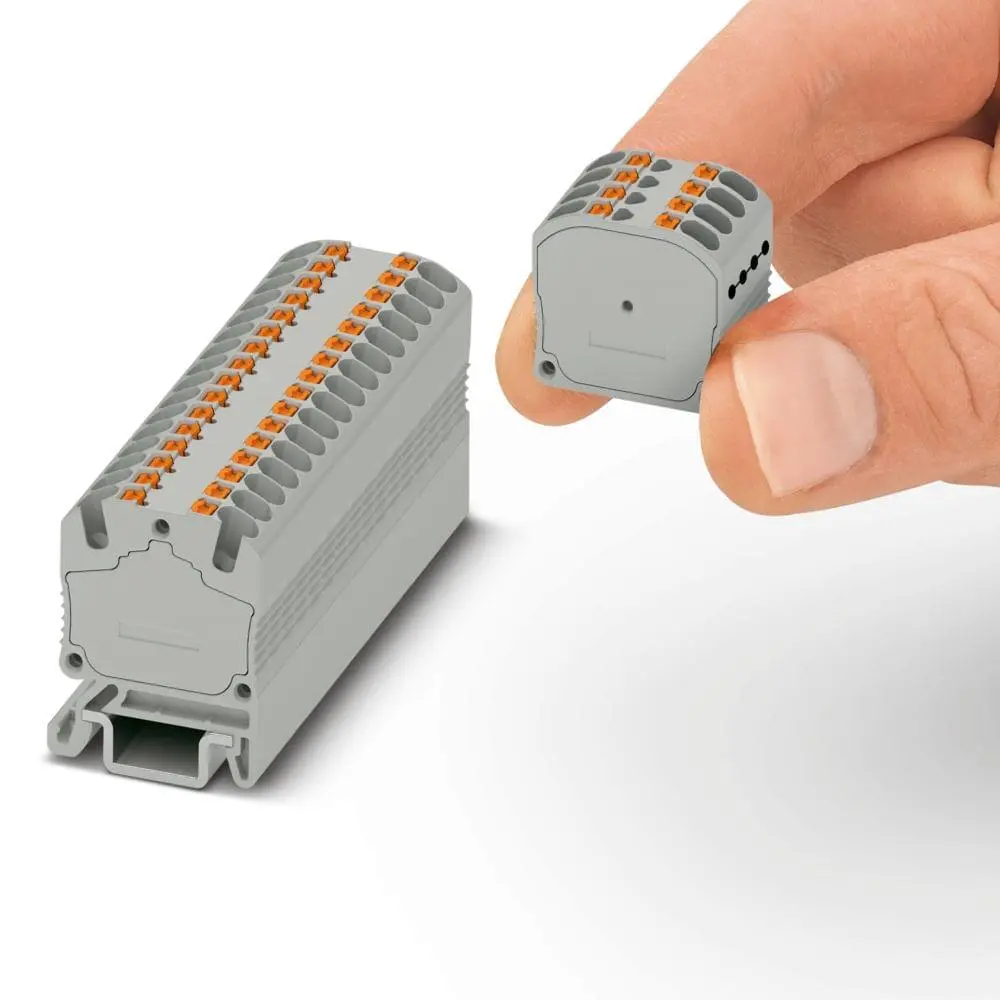

Phoenix Contact’s CLIPLINE complete system uses standardised accessories across the range. The micro and miniature terminal blocks sit within that system, which helps maintain consistency as panel density increases.

Where the different ranges fit

It’s more useful to think about what each type solves rather than just their size.

Micro terminal blocks

These suit high-density areas where space is limited and conductor sizes are smaller.

They allow layouts to be tightened without losing marking or test access, which becomes more important as access reduces.

They’re also available as compact potential distributors, which helps keep distribution within the same footprint instead of adding extra components.

Miniature terminal blocks

These are suited to small control boxes and compact panels where space is still constrained but slightly more flexibility is needed.

The key point is that functionality is retained. Standardised bridging and test accessories are still supported, which helps maintain consistency across the panel.

Double and modular miniature blocks

These are used where density needs to increase without making the layout harder to manage.

Double blocks allow more connections within the same space, while modular versions make it easier to build up sections depending on the layout.

That flexibility helps when you’re trying to fit more into less space without introducing variation.

Plug-in miniature terminal blocks

These come into play where build time and repeatability matter.

Plug-in connections allow for preassembled wiring, which can reduce manual termination during final assembly or install. They also make disconnection easier for maintenance or replacement.

Micro potential distributors

Potential distribution often takes up more space than expected, especially in tighter panels.

Compact distributor variants help keep layouts clean and reduce the need for additional components.

What this means in practice

As panel density increases, the goal isn’t just to make everything smaller.

It’s to keep the panel consistent, readable, testable, and maintainable.

Reducing size helps, but only if it doesn’t introduce more variation.

That’s where a system-based approach to terminal blocks becomes more important.

A shift in how terminal blocks are selected

Instead of selecting terminal blocks based only on size or connection type, it becomes more useful to look at how they affect the panel as a whole.

How consistent are the accessories?
How easy is it to wire and test?
How much variation is introduced across the layout?
How easy will it be to work on later?

Those questions become more important as space becomes more constrained.

Final thought

Panel density isn’t just a layout problem.

It’s a consistency problem.

And as panels get tighter, that consistency becomes harder to maintain, and more important to get right.
