What defines a good ferrule termination

Two identical terminations in the same panel can behave differently.

The difference comes down to how it’s applied.

If you’re looking at how ferrules contribute to consistent, vibration-resistant connections and clean terminations across a build, we’ve covered that here.

This article focuses on what affects the result once a ferrule is in use, and where to look when termination quality isn’t consistent.

It usually comes back to a small number of factors.

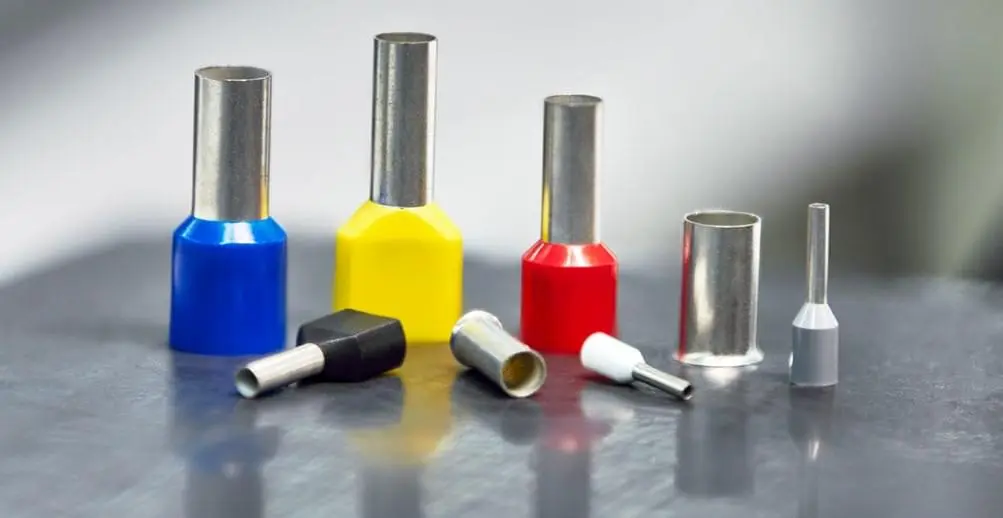

Ferrule length needs to match the terminal

Ferrule length needs to match both the conductor and the clamping space in the terminal.

If the ferrule is too long, it can bottom out before the conductor is fully inserted. The terminal ends up clamping the sleeve instead of the conductor.

If the ferrule is too short, the conductor may not be fully supported inside the clamping point. That reduces contact area and makes the connection less stable under load or vibration.

Stripping length ties into this as well. If the conductor isn’t stripped to suit the ferrule, the crimp and the final fit in the terminal are both affected.

Ferrule cross-sections are defined by physical dimensions, while conductor cross-sections are based on electrical properties. The two don’t always translate directly, which affects how consistently the ferrule fits the conductor and terminal.

This is where inconsistencies start to appear across a panel. Two terminations using the same conductor can behave differently when the fit isn’t consistent.

The crimp defines the connection

The crimp forms the mechanical and electrical connection between the conductor and the ferrule.

The deformation needs to be consistent across the full cross-section. An uneven crimp can leave voids or over-compress sections of the conductor.

Voids reduce the effective contact area. Over-compression can damage strands. Both increase contact resistance.

This doesn’t always appear immediately. It tends to appear over time as heat, voltage drop, or intermittent faults.

Material behaviour affects the outcome

Ferrules are designed to deform in a controlled way during crimping. That behaviour depends on the material.

If the ferrule is too hard, it can crack during crimping or fail to form properly around the conductor.

If it’s too soft, it may not hold its shape under pressure or over time.

Standards such as DIN 46228 define limits around material properties for this reason, and manufacturers like Phoenix Contact design ferrules to meet these requirements.

In practice, differences in how ferrules deform under crimping become visible during installation and over time.

Tool and ferrule need to work together

The crimp geometry is defined by the tool as much as the ferrule.

Using a tool that doesn’t match the ferrule design can result in inconsistent deformation, even when the correct size is selected.

Standards like UL 486F take this further by qualifying the ferrule and tool as a tested combination. The connection is only compliant when both are used together.

Manufacturers such as Phoenix Contact certify ferrules to UL 486F in combination with specific crimping tools and automated systems, reinforcing the importance of using matched components to achieve a consistent result.

In the field, this shows up as variation in crimp quality across a build. The ferrule may be correct, but the result changes depending on how it’s applied.

A good termination is visible

A correctly formed ferrule termination has a few consistent characteristics:

• No cracks in the ferrule after crimping

• No excessive burrs or sharp edges

• Strands fully contained within the ferrule

• A firm, even crimp across the full length

These checks indicate whether the connection has been formed correctly.

They’re also one of the quickest ways to pick up inconsistencies during a build or inspection.

Where these differences show up

These factors become more noticeable in:

• High-density control panels where space is limited

• Installations subject to vibration

• Systems that are rewired or modified over time

• Applications where consistent signal or power integrity matters

In these environments, small differences in how terminations are formed tend to appear earlier.

Across a panel, these factors add up.

When terminations aren’t consistent, it’s usually worth checking how the ferrule fits the terminal, how the crimp is formed, and how that approach is being applied across the build.
